Definition Type: ComplexType
Name: GeometryPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
A geometric property may either be any geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same or another document). Note that either the reference or the contained element shall be given, but not both or none. If a feature has a property that takes a geometry element as its value, this is called a geometry property. A generic type for such a geometry property is GeometryPropertyType.

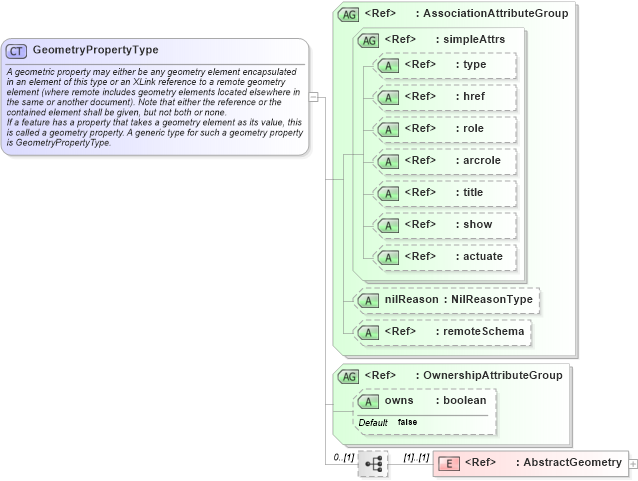

Collapse XSD Schema Diagram:
Drilldown into AbstractGeometry in schema geometrybasic0d1d_xsd Drilldown into owns in schema gmlbase_xsd Drilldown into OwnershipAttributeGroup in schema gmlbase_xsd Drilldown into remoteSchema in schema deprecatedtypes_xsd Drilldown into nilReason in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of GeometryPropertyType in schema geometrybasic0d1d_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="GeometryPropertyType">
    <annotation>
        <documentation>A geometric property may either be any geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same or another document). Note that either the reference or the contained element shall be given, but not both or none.
If a feature has a property that takes a geometry element as its value, this is called a geometry property. A generic type for such a geometry property is GeometryPropertyType.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:AbstractGeometry" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractGeometry gml:AbstractGeometry (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
Collapse References:
gmltin:elementGeometrygml:geometryMember, gml:position,
