Documentation for Geography Markup Language
Definition Type: ComplexType
Name: GridType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractGeometryType
Containing Schema: grids.xsd
Abstract

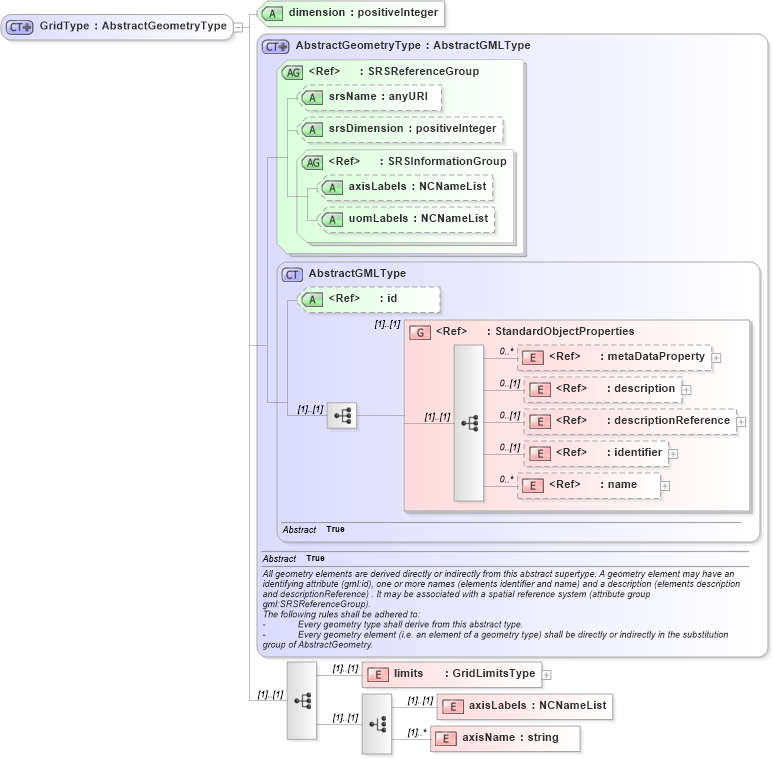

Collapse XSD Schema Diagram:
Drilldown into axisName in schema grids_xsd Drilldown into axisLabels in schema grids_xsd Drilldown into limits in schema grids_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into dimension in schema grids_xsdXSD Diagram of GridType in schema grids_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="GridType">
    <complexContent>
        <extension base="gml:AbstractGeometryType">
            <sequence>
                <element name="limits" type="gml:GridLimitsType" />
                <choice>
                    <element name="axisLabels" type="gml:NCNameList" />
                    <element name="axisName" type="string" maxOccurs="unbounded" />
                </choice>
            </sequence>
            <attribute name="dimension" type="positiveInteger" use="required" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
limits gml:limits (1) (1)
axisLabels gml:axisLabels (1) (1)
axisName gml:axisName (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
dimension gml:dimension Required
Collapse Derivation Tree:
Collapse References:
gmlrgrid:AbstractReferenceableGridTypegml:Grid, gml:RectifiedGridType,
