Documentation for Geography Markup Language
Definition Type: ComplexType
Name: LinearElementType
Namespace: http://www.opengis.net/gml/3.3/lr
Type: gml:AbstractGMLType
Containing Schema: linearRef.xsd
Abstract

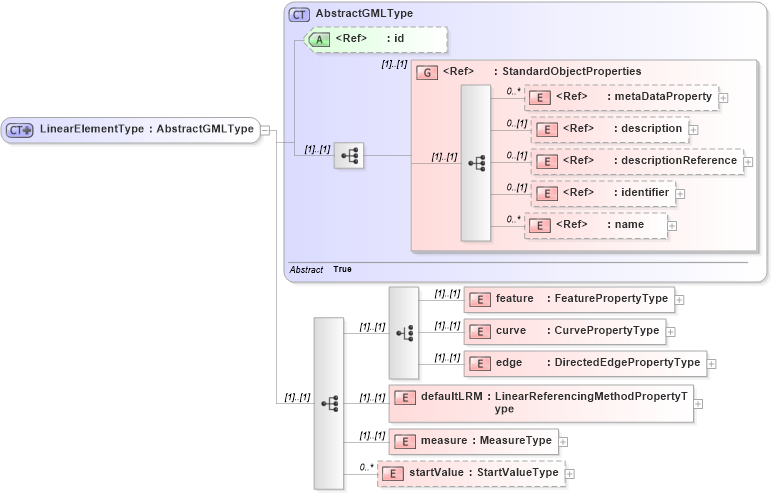

Collapse XSD Schema Diagram:
Drilldown into startValue in schema linearref_xsd Drilldown into measure in schema linearref_xsd Drilldown into defaultLRM in schema linearref_xsd Drilldown into edge in schema linearref_xsd Drilldown into curve in schema linearref_xsd Drilldown into feature in schema linearref_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsdXSD Diagram of LinearElementType in schema linearref_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="LinearElementType">
    <complexContent>
        <extension base="gml:AbstractGMLType">
            <sequence>
                <choice>
                    <element name="feature" type="gml:FeaturePropertyType" />
                    <element name="curve" type="gml:CurvePropertyType" />
                    <element name="edge" type="gml:DirectedEdgePropertyType" />
                </choice>
                <element name="defaultLRM" type="gmllr:LinearReferencingMethodPropertyType" />
                <element name="measure" type="gml:MeasureType" />
                <element name="startValue" type="gmllr:StartValueType" minOccurs="0" maxOccurs="unbounded" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
feature gmllr:feature (1) (1)
curve gmllr:curve (1) (1)
edge gmllr:edge (1) (1)
defaultLRM gmllr:defaultLRM (1) (1)
measure gmllr:measure (1) (1)
startValue gmllr:startValue 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gmllr:LinearElement
