Documentation for Geography Markup Language
Definition Type: Element
Name: LineStringSegment
Namespace: http://www.opengis.net/gml/3.2
Type: gml:LineStringSegmentType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A LineStringSegment is a curve segment that is defined by two or more control points including the start and end point, with linear interpolation between them. The content model follows the general pattern for the encoding of curve segments.

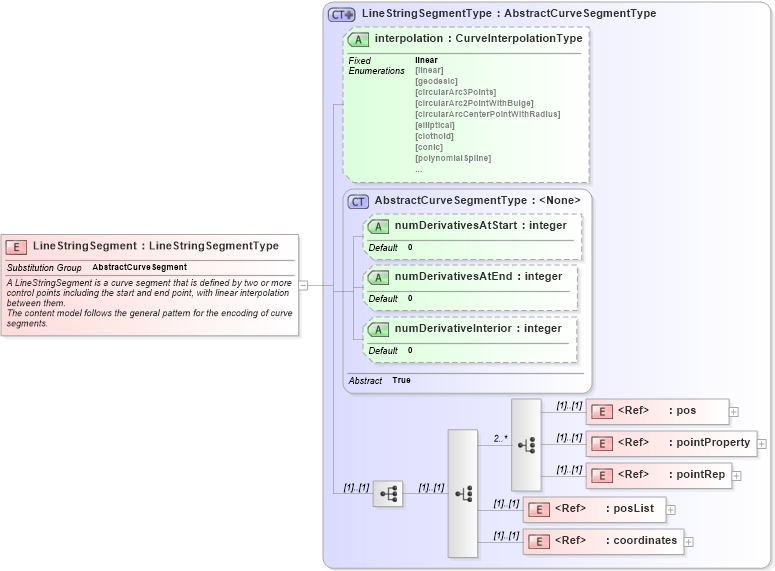

Collapse XSD Schema Diagram:
Drilldown into coordinates in schema deprecatedtypes_xsd Drilldown into posList in schema geometrybasic0d1d_xsd Drilldown into pointRep in schema deprecatedtypes_xsd Drilldown into pointProperty in schema geometrybasic0d1d_xsd Drilldown into pos in schema geometrybasic0d1d_xsd Drilldown into numDerivativeInterior in schema geometryprimitives_xsd Drilldown into numDerivativesAtEnd in schema geometryprimitives_xsd Drilldown into numDerivativesAtStart in schema geometryprimitives_xsd Drilldown into AbstractCurveSegmentType in schema geometryprimitives_xsd Drilldown into interpolation in schema geometryprimitives_xsd Drilldown into LineStringSegmentType in schema geometryprimitives_xsdXSD Diagram of LineStringSegment in schema geometryprimitives_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="LineStringSegment" type="gml:LineStringSegmentType" substitutionGroup="gml:AbstractCurveSegment">
    <annotation>
        <documentation>A LineStringSegment is a curve segment that is defined by two or more control points including the start and end point, with linear interpolation between them.
The content model follows the general pattern for the encoding of curve segments.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurveSegment
