Documentation for Geography Markup Language
Definition Type: ComplexType
Name: LRMWithOffsetType
Namespace: http://www.opengis.net/gml/3.3/lro
Type: gmllr:LinearReferencingMethodType
Containing Schema: linearRefOffset.xsd
Abstract

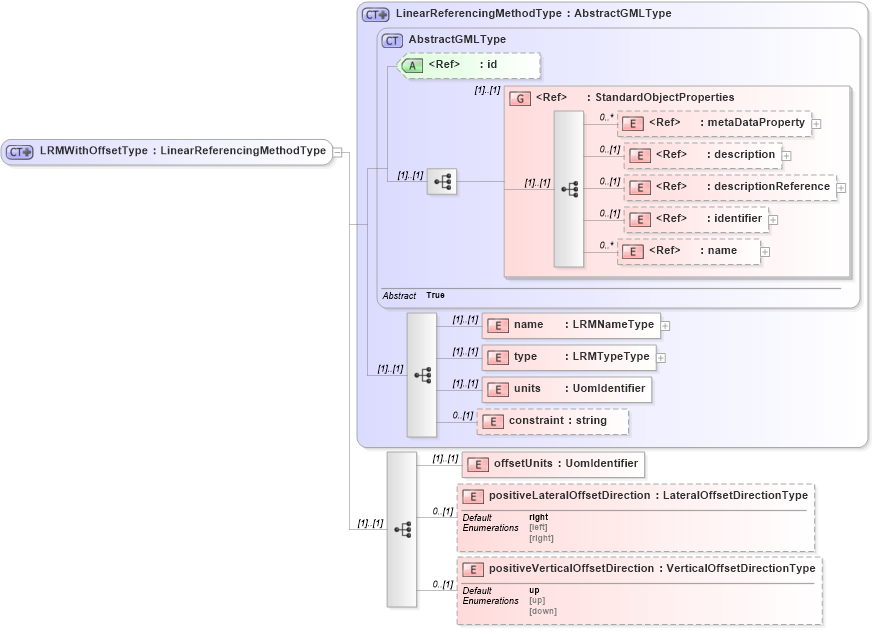

Collapse XSD Schema Diagram:
Drilldown into positiveVerticalOffsetDirection in schema linearrefoffset_xsd Drilldown into positiveLateralOffsetDirection in schema linearrefoffset_xsd Drilldown into offsetUnits in schema linearrefoffset_xsd Drilldown into constraint in schema linearref_xsd Drilldown into units in schema linearref_xsd Drilldown into type in schema linearref_xsd Drilldown into name in schema linearref_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into LinearReferencingMethodType in schema linearref_xsdXSD Diagram of LRMWithOffsetType in schema linearrefoffset_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="LRMWithOffsetType">
    <complexContent>
        <extension base="gmllr:LinearReferencingMethodType">
            <sequence>
                <element name="offsetUnits" type="gml:UomIdentifier" />
                <element name="positiveLateralOffsetDirection" type="gmllro:LateralOffsetDirectionType" default="right" minOccurs="0" />
                <element name="positiveVerticalOffsetDirection" type="gmllro:VerticalOffsetDirectionType" default="up" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
name gmllr:name (1) (1)
type gmllr:type (1) (1)
units gmllr:units (1) (1)
constraint gmllr:constraint 0 (1)
offsetUnits gmllro:offsetUnits (1) (1)
positiveLateralOffsetDirection gmllro:positiveLateralOffsetDirection 0 (1)
positiveVerticalOffsetDirection gmllro:positiveVerticalOffsetDirection 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gmllro:LRMWithOffset
