Documentation for Geography Markup Language
Definition Type: ComplexType
Name: MD_Dimension_Type
Namespace: http://www.isotc211.org/2005/gmd
Type: gco:AbstractObject_Type
Containing Schema: spatialRepresentation.xsd
Abstract
Collapse XSD Schema Diagram:

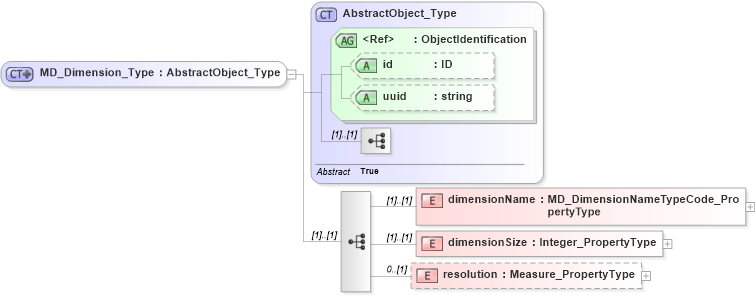

Drilldown into resolution in schema spatialrepresentation_xsd Drilldown into dimensionSize in schema spatialrepresentation_xsd Drilldown into dimensionName in schema spatialrepresentation_xsd Drilldown into uuid in schema gcobase_xsd Drilldown into id in schema gcobase_xsd Drilldown into ObjectIdentification in schema gcobase_xsd Drilldown into AbstractObject_Type in schema gcobase_xsdXSD Diagram of MD_Dimension_Type in schema spatialrepresentation_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<xs:complexType name="MD_Dimension_Type">
    <xs:complexContent>
        <xs:extension base="gco:AbstractObject_Type">
            <xs:sequence>
                <xs:element name="dimensionName" type="gmd:MD_DimensionNameTypeCode_PropertyType" />
                <xs:element name="dimensionSize" type="gco:Integer_PropertyType" />
                <xs:element name="resolution" type="gco:Measure_PropertyType" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
dimensionName gmd:dimensionName (1) (1)
dimensionSize gmd:dimensionSize (1) (1)
resolution gmd:resolution 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:MD_Dimension
