Documentation for Geography Markup Language
Definition Type: Element
Name: MultiCurve
Namespace: http://www.opengis.net/gml/3.2
Type: gml:MultiCurveType
Containing Schema: geometryAggregates.xsd
Abstract
Documentation:
A gml:MultiCurve is defined by one or more gml:AbstractCurves. The members of the geometric aggregate may be specified either using the "standard" property (gml:curveMember) or the array property (gml:curveMembers). It is also valid to use both the "standard" and the array properties in the same collection.

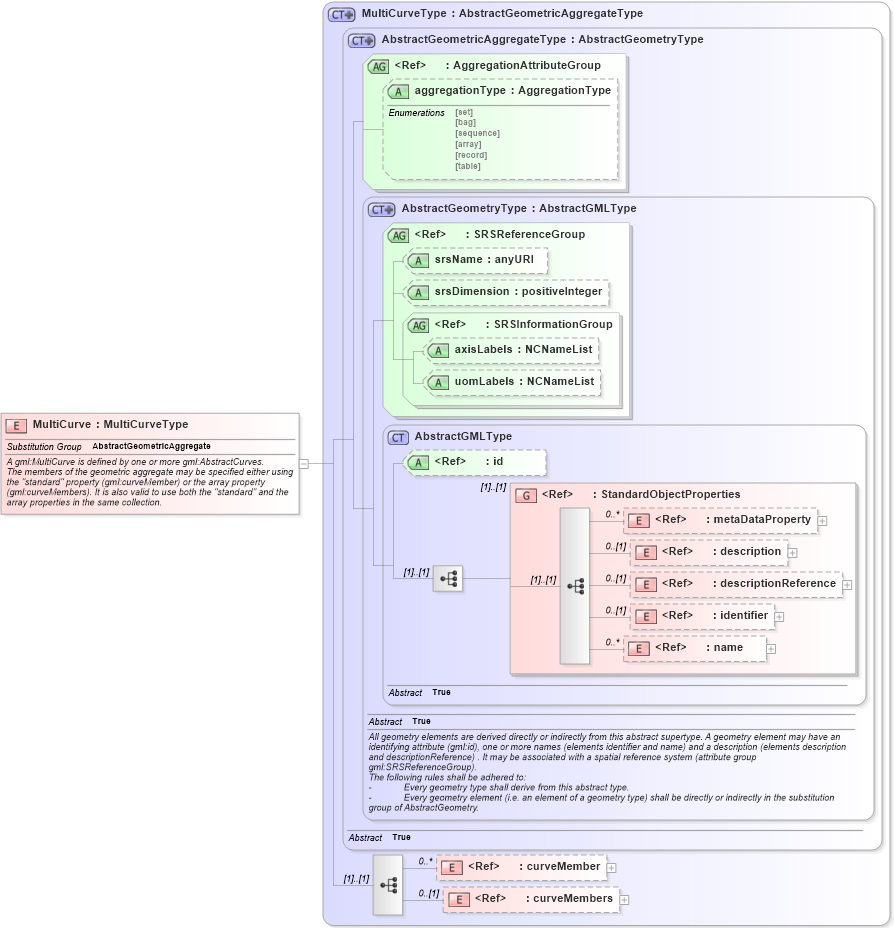

Collapse XSD Schema Diagram:
Drilldown into curveMembers in schema geometryaggregates_xsd Drilldown into curveMember in schema geometryprimitives_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into uomLabels in schema geometrybasic0d1d_xsd Drilldown into axisLabels in schema geometrybasic0d1d_xsd Drilldown into SRSInformationGroup in schema geometrybasic0d1d_xsd Drilldown into srsDimension in schema geometrybasic0d1d_xsd Drilldown into srsName in schema geometrybasic0d1d_xsd Drilldown into SRSReferenceGroup in schema geometrybasic0d1d_xsd Drilldown into AbstractGeometryType in schema geometrybasic0d1d_xsd Drilldown into aggregationType in schema gmlbase_xsd Drilldown into AggregationAttributeGroup in schema gmlbase_xsd Drilldown into AbstractGeometricAggregateType in schema geometryaggregates_xsd Drilldown into MultiCurveType in schema geometryaggregates_xsdXSD Diagram of MultiCurve in schema geometryaggregates_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="MultiCurve" type="gml:MultiCurveType" substitutionGroup="gml:AbstractGeometricAggregate">
    <annotation>
        <documentation>A gml:MultiCurve is defined by one or more gml:AbstractCurves.
The members of the geometric aggregate may be specified either using the "standard" property (gml:curveMember) or the array property (gml:curveMembers). It is also valid to use both the "standard" and the array properties in the same collection.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
curveMember gml:curveMember 0 unbounded
curveMembers gml:curveMembers 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractGeometricAggregate
