Documentation for Geography Markup Language
Definition Type: ComplexType
Name: RS_ReferenceSystem_PropertyType
Namespace: http://www.isotc211.org/2005/gmd
Containing Schema: referenceSystem.xsd
Abstract

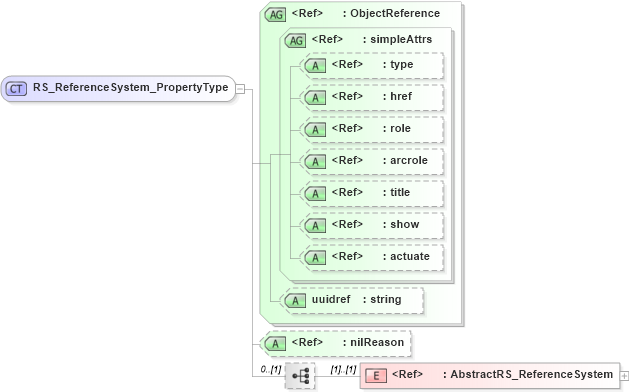

Collapse XSD Schema Diagram:
Drilldown into AbstractRS_ReferenceSystem in schema referencesystem_xsd Drilldown into nilReason in schema gcobase_xsd Drilldown into uuidref in schema gcobase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into ObjectReference in schema gcobase_xsdXSD Diagram of RS_ReferenceSystem_PropertyType in schema referencesystem_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<xs:complexType name="RS_ReferenceSystem_PropertyType">
    <xs:sequence minOccurs="0">
        <xs:element ref="gmd:AbstractRS_ReferenceSystem" />
    </xs:sequence>
    <xs:attributeGroup ref="gco:ObjectReference" />
    <xs:attribute ref="gco:nilReason" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractRS_ReferenceSystem gmd:AbstractRS_ReferenceSystem (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
uuidref gco:uuidref (Optional)
nilReason gco:nilReason (Optional)
