Documentation for Geography Markup Language
Definition Type: ComplexType
Name: SingleCRSPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateReferenceSystems.xsd
Abstract
Documentation:
gml:SingleCRSPropertyType is a property type for association roles to a single coordinate reference system, either referencing or containing the definition of that coordinate reference system.
Collapse XSD Schema Diagram:

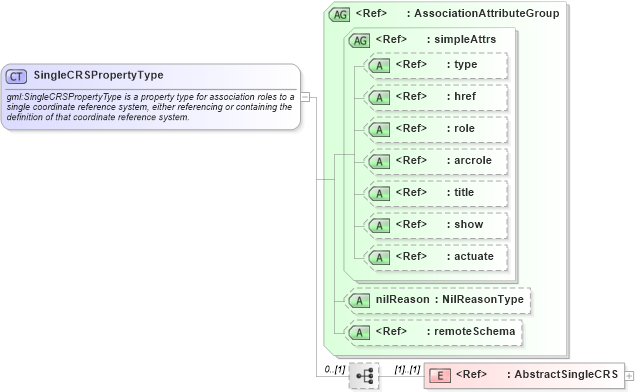

Drilldown into AbstractSingleCRS in schema coordinatereferencesystems_xsd Drilldown into remoteSchema in schema deprecatedtypes_xsd Drilldown into nilReason in schema gmlbase_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into AssociationAttributeGroup in schema gmlbase_xsdXSD Diagram of SingleCRSPropertyType in schema coordinatereferencesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="SingleCRSPropertyType">
    <annotation>
        <documentation>gml:SingleCRSPropertyType is a property type for association roles to a single coordinate reference system, either referencing or containing the definition of that coordinate reference system.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:AbstractSingleCRS" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractSingleCRS gml:AbstractSingleCRS (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:baseCRS, gml:componentReferenceSystem, gml:includesSingleCRS, gml:singleCRSRef
