Documentation for Geography Markup Language
Definition Type: Element
Name: TimeOrdinalEra
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TimeOrdinalEraType
Containing Schema: temporalReferenceSystems.xsd
Abstract
Documentation:
Its content model follows the pattern of gml:TimeEdge, inheriting standard properties from gml:DefinitionType, and adding gml:start, gml:end and gml:extent properties, a set of gml:member properties which indicate ordered gml:TimeOrdinalEra elements, and a gml:group property which points to the parent era. The recursive inclusion of gml:TimeOrdinalEra elements allow the construction of an arbitrary depth hierarchical ordinal reference schema, such that an ordinal era at a given level of the hierarchy includes a sequence of shorter, coterminous ordinal eras.

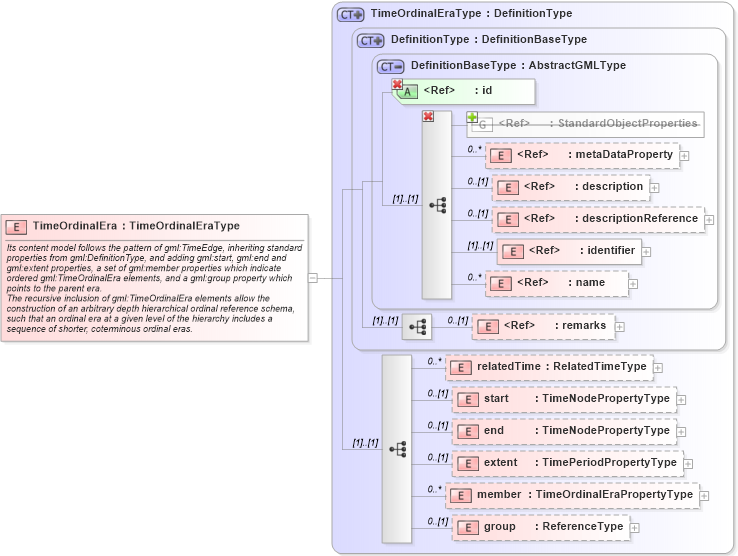

Collapse XSD Schema Diagram:
Drilldown into group in schema temporalreferencesystems_xsd Drilldown into member in schema temporalreferencesystems_xsd Drilldown into extent in schema temporalreferencesystems_xsd Drilldown into end in schema temporalreferencesystems_xsd Drilldown into start in schema temporalreferencesystems_xsd Drilldown into relatedTime in schema temporalreferencesystems_xsd Drilldown into remarks in schema dictionary_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into DefinitionBaseType in schema dictionary_xsd Drilldown into DefinitionType in schema dictionary_xsd Drilldown into TimeOrdinalEraType in schema temporalreferencesystems_xsdXSD Diagram of TimeOrdinalEra in schema temporalreferencesystems_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="TimeOrdinalEra" type="gml:TimeOrdinalEraType">
    <annotation>
        <documentation>Its content model follows the pattern of gml:TimeEdge, inheriting standard properties from gml:DefinitionType, and adding gml:start, gml:end and gml:extent properties, a set of gml:member properties which indicate ordered gml:TimeOrdinalEra elements, and a gml:group property which points to the parent era.
The recursive inclusion of gml:TimeOrdinalEra elements allow the construction of an arbitrary depth hierarchical ordinal reference schema, such that an ordinal era at a given level of the hierarchy includes a sequence of shorter, coterminous ordinal eras.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
relatedTime gml:relatedTime 0 unbounded
start gml:start 0 (1)
end gml:end 0 (1)
extent gml:extent 0 (1)
member gml:member 0 unbounded
group gml:group 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
