Documentation for Geography Markup Language
Definition Type: Element
Name: TimeTopologyComplex
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TimeTopologyComplexType
Containing Schema: temporalTopology.xsd
Abstract
Documentation:
A temporal topology complex shall be the connected acyclic directed graph composed of temporal topological primitives, i.e. time nodes and time edges. Because a time edge may not exist without two time nodes on its boundaries, static features have time edges from a temporal topology complex as the values of their temporal properties, regardless of explicit declarations. A temporal topology complex expresses a linear or a non-linear graph. A temporal linear graph, composed of a sequence of time edges, provides a lineage described only by "substitution" of feature instances or feature element values. A time node as the start or the end of the graph connects with at least one time edge. A time node other than the start and the end shall connect to at least two time edges: one of starting from the node, and another ending at the node. A temporal topological complex is a set of connected temporal topological primitives. The member primtives are indicated, either by reference or by value, using the primitive property.

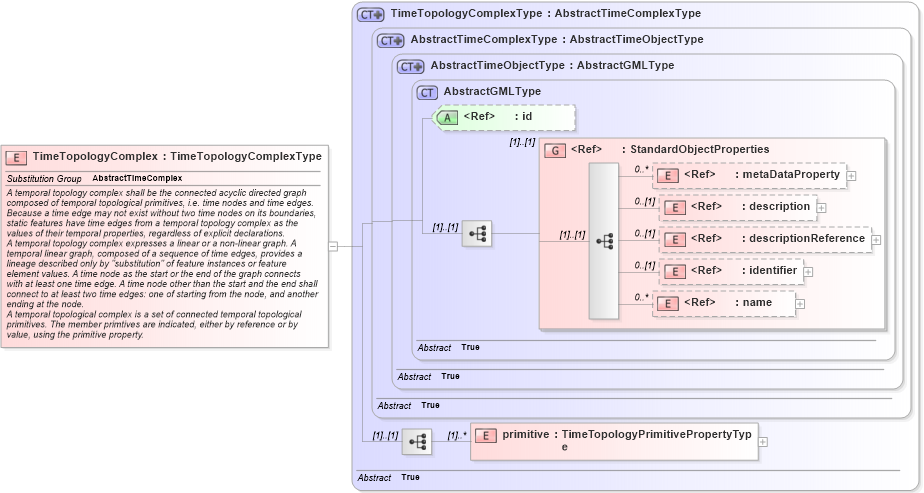

Collapse XSD Schema Diagram:
Drilldown into primitive in schema temporaltopology_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into AbstractGMLType in schema gmlbase_xsd Drilldown into AbstractTimeObjectType in schema temporal_xsd Drilldown into AbstractTimeComplexType in schema temporal_xsd Drilldown into TimeTopologyComplexType in schema temporaltopology_xsdXSD Diagram of TimeTopologyComplex in schema temporaltopology_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<element name="TimeTopologyComplex" type="gml:TimeTopologyComplexType" substitutionGroup="gml:AbstractTimeComplex">
    <annotation>
        <documentation>A temporal topology complex shall be the connected acyclic directed graph composed of temporal topological primitives, i.e. time nodes and time edges. Because a time edge may not exist without two time nodes on its boundaries, static features have time edges from a temporal topology complex as the values of their temporal properties, regardless of explicit declarations.
A temporal topology complex expresses a linear or a non-linear graph. A temporal linear graph, composed of a sequence of time edges, provides a lineage described only by "substitution" of feature instances or feature element values. A time node as the start or the end of the graph connects with at least one time edge. A time node other than the start and the end shall connect to at least two time edges: one of starting from the node, and another ending at the node.
A temporal topological complex is a set of connected temporal topological primitives. The member primtives are indicated, either by reference or by value, using the primitive property.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
primitive gml:primitive (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractTimeComplex
