Definition Type: ComplexType
Name: VectorOffsetLinearSRSType
Namespace: http://www.opengis.net/gml/3.3/lrov
Type: gmllr:LinearSRSType
Containing Schema: linearRefOffsetVector.xsd
Abstract

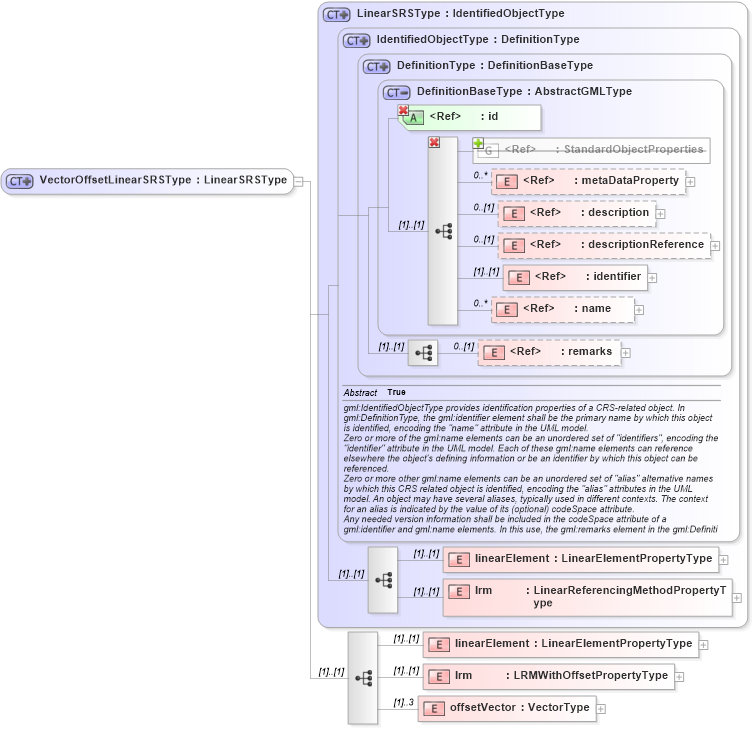

Collapse XSD Schema Diagram:
Drilldown into offsetVector in schema linearrefoffsetvector_xsd Drilldown into lrm in schema linearrefoffsetvector_xsd Drilldown into linearElement in schema linearrefoffsetvector_xsd Drilldown into lrm in schema linearref_xsd Drilldown into linearElement in schema linearref_xsd Drilldown into remarks in schema dictionary_xsd Drilldown into name in schema gmlbase_xsd Drilldown into identifier in schema gmlbase_xsd Drilldown into descriptionReference in schema gmlbase_xsd Drilldown into description in schema gmlbase_xsd Drilldown into metaDataProperty in schema deprecatedtypes_xsd Drilldown into StandardObjectProperties in schema gmlbase_xsd Drilldown into id in schema gmlbase_xsd Drilldown into DefinitionBaseType in schema dictionary_xsd Drilldown into DefinitionType in schema dictionary_xsd Drilldown into IdentifiedObjectType in schema referencesystems_xsd Drilldown into LinearSRSType in schema linearref_xsdXSD Diagram of VectorOffsetLinearSRSType in schema linearrefoffsetvector_xsd (Geography Markup Language)
Collapse XSD Schema Code:
<complexType name="VectorOffsetLinearSRSType">
    <complexContent>
        <extension base="gmllr:LinearSRSType">
            <sequence>
                <element name="linearElement" type="gmllr:LinearElementPropertyType" />
                <element name="lrm" type="gmllro:LRMWithOffsetPropertyType" />
                <element name="offsetVector" type="gmllrov:VectorType" maxOccurs="3" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
linearElement gmllr:linearElement (1) (1)
lrm gmllr:lrm (1) (1)
linearElement gmllrov:linearElement (1) (1)
lrm gmllrov:lrm (1) (1)
offsetVector gmllrov:offsetVector (1) 3
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gmllrov:VectorOffsetLinearSRS
