Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: BPO.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

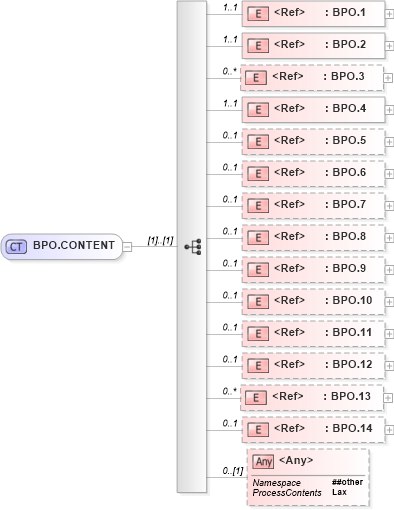

Collapse XSD Schema Diagram:
Drilldown into BPO.14 in schema fields_xsd Drilldown into BPO.13 in schema fields_xsd Drilldown into BPO.12 in schema fields_xsd Drilldown into BPO.11 in schema fields_xsd Drilldown into BPO.10 in schema fields_xsd Drilldown into BPO.9 in schema fields_xsd Drilldown into BPO.8 in schema fields_xsd Drilldown into BPO.7 in schema fields_xsd Drilldown into BPO.6 in schema fields_xsd Drilldown into BPO.5 in schema fields_xsd Drilldown into BPO.4 in schema fields_xsd Drilldown into BPO.3 in schema fields_xsd Drilldown into BPO.2 in schema fields_xsd Drilldown into BPO.1 in schema fields_xsdXSD Diagram of BPO.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="BPO.CONTENT">
    <xsd:sequence>
        <xsd:element ref="BPO.1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="BPO.2" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="BPO.3" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BPO.4" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="BPO.5" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BPO.6" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BPO.7" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BPO.8" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BPO.9" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BPO.10" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BPO.11" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BPO.12" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BPO.13" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BPO.14" minOccurs="0" maxOccurs="1" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BPO.1 nsA:BPO.1 1 1
BPO.2 nsA:BPO.2 1 1
BPO.3 nsA:BPO.3 0 unbounded
BPO.4 nsA:BPO.4 1 1
BPO.5 nsA:BPO.5 0 1
BPO.6 nsA:BPO.6 0 1
BPO.7 nsA:BPO.7 0 1
BPO.8 nsA:BPO.8 0 1
BPO.9 nsA:BPO.9 0 1
BPO.10 nsA:BPO.10 0 1
BPO.11 nsA:BPO.11 0 1
BPO.12 nsA:BPO.12 0 1
BPO.13 nsA:BPO.13 0 unbounded
BPO.14 nsA:BPO.14 0 1
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:BPO
