Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: CON.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

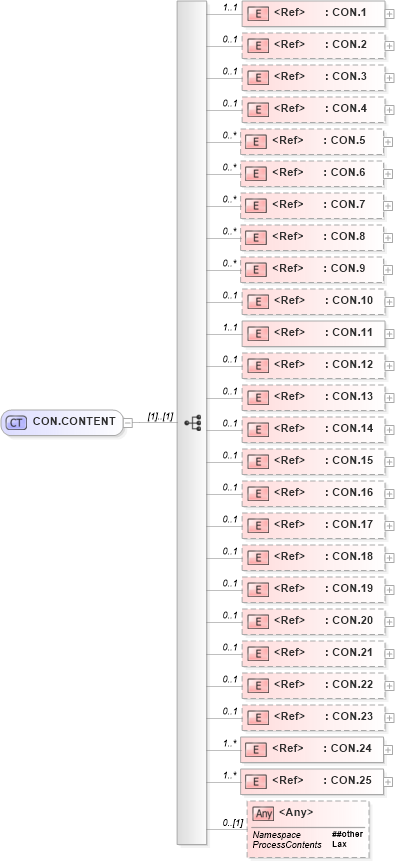

Collapse XSD Schema Diagram:
Drilldown into CON.25 in schema fields_xsd Drilldown into CON.24 in schema fields_xsd Drilldown into CON.23 in schema fields_xsd Drilldown into CON.22 in schema fields_xsd Drilldown into CON.21 in schema fields_xsd Drilldown into CON.20 in schema fields_xsd Drilldown into CON.19 in schema fields_xsd Drilldown into CON.18 in schema fields_xsd Drilldown into CON.17 in schema fields_xsd Drilldown into CON.16 in schema fields_xsd Drilldown into CON.15 in schema fields_xsd Drilldown into CON.14 in schema fields_xsd Drilldown into CON.13 in schema fields_xsd Drilldown into CON.12 in schema fields_xsd Drilldown into CON.11 in schema fields_xsd Drilldown into CON.10 in schema fields_xsd Drilldown into CON.9 in schema fields_xsd Drilldown into CON.8 in schema fields_xsd Drilldown into CON.7 in schema fields_xsd Drilldown into CON.6 in schema fields_xsd Drilldown into CON.5 in schema fields_xsd Drilldown into CON.4 in schema fields_xsd Drilldown into CON.3 in schema fields_xsd Drilldown into CON.2 in schema fields_xsd Drilldown into CON.1 in schema fields_xsdXSD Diagram of CON.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="CON.CONTENT">
    <xsd:sequence>
        <xsd:element ref="CON.1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="CON.2" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.3" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.4" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.5" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CON.6" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CON.7" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CON.8" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CON.9" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CON.10" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.11" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="CON.12" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.13" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.14" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.15" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.16" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.17" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.18" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.19" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.20" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.21" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.22" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.23" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CON.24" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="CON.25" minOccurs="1" maxOccurs="unbounded" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CON.1 nsA:CON.1 1 1
CON.2 nsA:CON.2 0 1
CON.3 nsA:CON.3 0 1
CON.4 nsA:CON.4 0 1
CON.5 nsA:CON.5 0 unbounded
CON.6 nsA:CON.6 0 unbounded
CON.7 nsA:CON.7 0 unbounded
CON.8 nsA:CON.8 0 unbounded
CON.9 nsA:CON.9 0 unbounded
CON.10 nsA:CON.10 0 1
CON.11 nsA:CON.11 1 1
CON.12 nsA:CON.12 0 1
CON.13 nsA:CON.13 0 1
CON.14 nsA:CON.14 0 1
CON.15 nsA:CON.15 0 1
CON.16 nsA:CON.16 0 1
CON.17 nsA:CON.17 0 1
CON.18 nsA:CON.18 0 1
CON.19 nsA:CON.19 0 1
CON.20 nsA:CON.20 0 1
CON.21 nsA:CON.21 0 1
CON.22 nsA:CON.22 0 1
CON.23 nsA:CON.23 0 1
CON.24 nsA:CON.24 1 unbounded
CON.25 nsA:CON.25 1 unbounded
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
  • CON.CONTENT
    • Unresolved link to con
Collapse References:
Unresolved link to con
