Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: OMI_O23.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: OMI_O23.xsd
Abstract

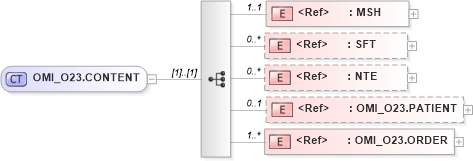

Collapse XSD Schema Diagram:
Drilldown into OMI_O23.ORDER in schema omi_o23_xsd Drilldown into OMI_O23.PATIENT in schema omi_o23_xsd Drilldown into NTE in schema segments_xsd Drilldown into SFT in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of OMI_O23.CONTENT in schema omi_o23_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="OMI_O23.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="SFT" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OMI_O23.PATIENT" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OMI_O23.ORDER" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
SFT nsA:SFT 0 unbounded
NTE nsA:NTE 0 unbounded
OMI_O23.PATIENT nsA:OMI_O23.PATIENT 0 1
OMI_O23.ORDER nsA:OMI_O23.ORDER 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:OMI_O23
