Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: OMI_O23.ORDER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: OMI_O23.xsd
Abstract

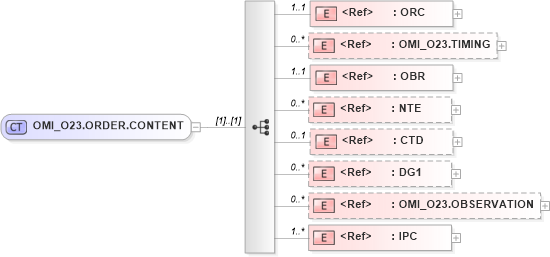

Collapse XSD Schema Diagram:
Drilldown into IPC in schema segments_xsd Drilldown into OMI_O23.OBSERVATION in schema omi_o23_xsd Drilldown into DG1 in schema segments_xsd Drilldown into CTD in schema segments_xsd Drilldown into NTE in schema segments_xsd Drilldown into OBR in schema segments_xsd Drilldown into OMI_O23.TIMING in schema omi_o23_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of OMI_O23.ORDER.CONTENT in schema omi_o23_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="OMI_O23.ORDER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="OMI_O23.TIMING" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OBR" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CTD" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DG1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OMI_O23.OBSERVATION" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="IPC" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 1 1
OMI_O23.TIMING nsA:OMI_O23.TIMING 0 unbounded
OBR nsA:OBR 1 1
NTE nsA:NTE 0 unbounded
CTD nsA:CTD 0 1
DG1 nsA:DG1 0 unbounded
OMI_O23.OBSERVATION nsA:OMI_O23.OBSERVATION 0 unbounded
IPC nsA:IPC 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:OMI_O23.ORDER
