Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: ORU_R30.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: ORU_R30.xsd
Abstract

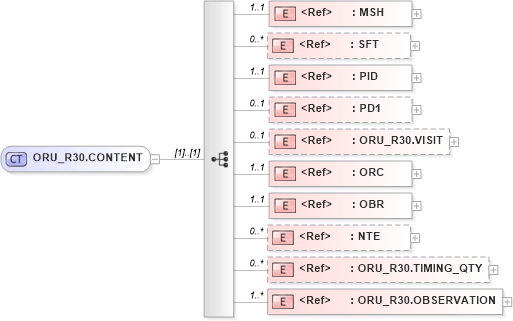

Collapse XSD Schema Diagram:
Drilldown into ORU_R30.OBSERVATION in schema oru_r30_xsd Drilldown into ORU_R30.TIMING_QTY in schema oru_r30_xsd Drilldown into NTE in schema segments_xsd Drilldown into OBR in schema segments_xsd Drilldown into ORC in schema segments_xsd Drilldown into ORU_R30.VISIT in schema oru_r30_xsd Drilldown into PD1 in schema segments_xsd Drilldown into PID in schema segments_xsd Drilldown into SFT in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of ORU_R30.CONTENT in schema oru_r30_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="ORU_R30.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="SFT" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PD1" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORU_R30.VISIT" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="OBR" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORU_R30.TIMING_QTY" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORU_R30.OBSERVATION" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
SFT nsA:SFT 0 unbounded
PID nsA:PID 1 1
PD1 nsA:PD1 0 1
ORU_R30.VISIT nsA:ORU_R30.VISIT 0 1
ORC nsA:ORC 1 1
OBR nsA:OBR 1 1
NTE nsA:NTE 0 unbounded
ORU_R30.TIMING_QTY nsA:ORU_R30.TIMING_QTY 0 unbounded
ORU_R30.OBSERVATION nsA:ORU_R30.OBSERVATION 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:ORU_R30
