Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: OUL_R23.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: OUL_R23.xsd
Abstract

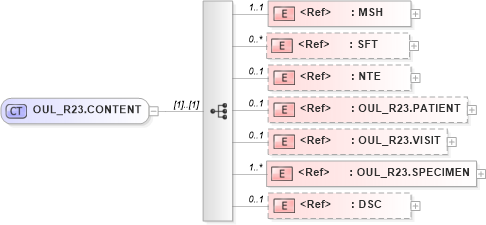

Collapse XSD Schema Diagram:
Drilldown into DSC in schema segments_xsd Drilldown into OUL_R23.SPECIMEN in schema oul_r23_xsd Drilldown into OUL_R23.VISIT in schema oul_r23_xsd Drilldown into OUL_R23.PATIENT in schema oul_r23_xsd Drilldown into NTE in schema segments_xsd Drilldown into SFT in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of OUL_R23.CONTENT in schema oul_r23_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="OUL_R23.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="SFT" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OUL_R23.PATIENT" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OUL_R23.VISIT" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OUL_R23.SPECIMEN" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="DSC" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
SFT nsA:SFT 0 unbounded
NTE nsA:NTE 0 1
OUL_R23.PATIENT nsA:OUL_R23.PATIENT 0 1
OUL_R23.VISIT nsA:OUL_R23.VISIT 0 1
OUL_R23.SPECIMEN nsA:OUL_R23.SPECIMEN 1 unbounded
DSC nsA:DSC 0 1
Collapse Derivation Tree:
Collapse References:
nsA:OUL_R23
