Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: RSP_K31.ORDER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: RSP_K31.xsd
Abstract

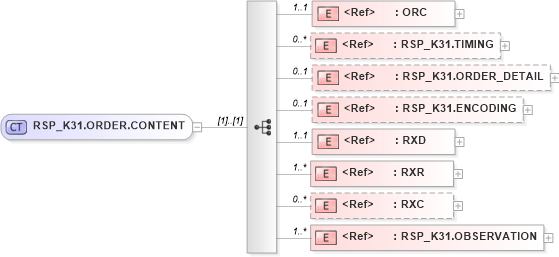

Collapse XSD Schema Diagram:
Drilldown into RSP_K31.OBSERVATION in schema rsp_k31_xsd Drilldown into RXC in schema segments_xsd Drilldown into RXR in schema segments_xsd Drilldown into RXD in schema segments_xsd Drilldown into RSP_K31.ENCODING in schema rsp_k31_xsd Drilldown into RSP_K31.ORDER_DETAIL in schema rsp_k31_xsd Drilldown into RSP_K31.TIMING in schema rsp_k31_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of RSP_K31.ORDER.CONTENT in schema rsp_k31_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="RSP_K31.ORDER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RSP_K31.TIMING" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RSP_K31.ORDER_DETAIL" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RSP_K31.ENCODING" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RXD" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RXR" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="RXC" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RSP_K31.OBSERVATION" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 1 1
RSP_K31.TIMING nsA:RSP_K31.TIMING 0 unbounded
RSP_K31.ORDER_DETAIL nsA:RSP_K31.ORDER_DETAIL 0 1
RSP_K31.ENCODING nsA:RSP_K31.ENCODING 0 1
RXD nsA:RXD 1 1
RXR nsA:RXR 1 unbounded
RXC nsA:RXC 0 unbounded
RSP_K31.OBSERVATION nsA:RSP_K31.OBSERVATION 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:RSP_K31.ORDER
