Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: RSP_Q11.QUERY_RESULT_CLUSTER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: RSP_Q11.xsd
Abstract
Collapse XSD Schema Diagram:

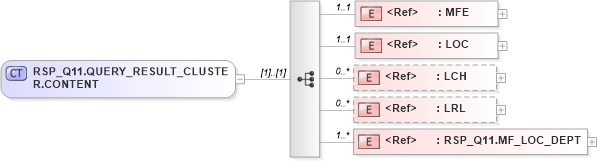

Drilldown into RSP_Q11.MF_LOC_DEPT in schema rsp_q11_xsd Drilldown into LRL in schema segments_xsd Drilldown into LCH in schema segments_xsd Drilldown into LOC in schema segments_xsd Drilldown into MFE in schema segments_xsdXSD Diagram of RSP_Q11.QUERY_RESULT_CLUSTER.CONTENT in schema rsp_q11_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="RSP_Q11.QUERY_RESULT_CLUSTER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MFE" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="LOC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="LCH" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="LRL" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RSP_Q11.MF_LOC_DEPT" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MFE nsA:MFE 1 1
LOC nsA:LOC 1 1
LCH nsA:LCH 0 unbounded
LRL nsA:LRL 0 unbounded
RSP_Q11.MF_LOC_DEPT nsA:RSP_Q11.MF_LOC_DEPT 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:RSP_Q11.QUERY_RESULT_CLUSTER
