Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: AcknowledgeScreeningOrderType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: AcknowledgeScreeningOrder.xsd
Abstract
Documentation:
AcknowledgeScreeningOrder conveys the result of a ProcessScreeningOrder request. ScreeningOrder Contains a set of information necessary to submit or administer screening requests to employment-screening service providers. Examples of screenings are searches of criminal records, education, employment, military service, professional licenses, professional sanctions, and credit. Acknowledge is a "Response Verb". Response Expressions represent and communicate actions taken by the receiver. XPath is the default expression language. The actionCode attribute (Accepted, Modified, Rejected specifies the action taken by the receiver. ChangeStatus allows detailed change and state information to be returned.

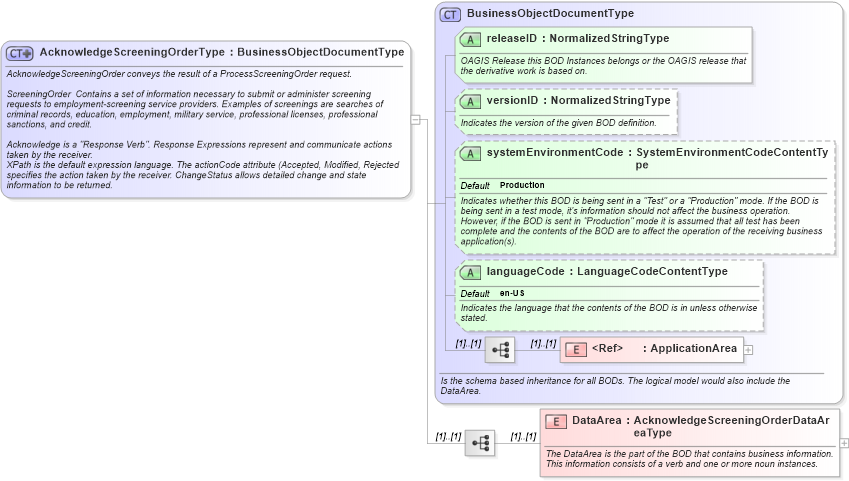

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema acknowledgescreeningorder_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of AcknowledgeScreeningOrderType in schema acknowledgescreeningorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AcknowledgeScreeningOrderType">
    <xsd:annotation>
        <xsd:documentation>
       AcknowledgeScreeningOrder conveys the result of a ProcessScreeningOrder request.

       ScreeningOrder  Contains a set of information necessary to submit or administer screening requests to employment-screening service providers. Examples of screenings are searches of criminal records, education, employment, military service, professional licenses, professional sanctions, and credit.

       Acknowledge is a "Response Verb". Response Expressions represent and communicate actions taken by the receiver.
       XPath is the default expression language. The actionCode attribute (Accepted, Modified, Rejected
       specifies the action taken by the receiver. ChangeStatus allows detailed change and state information to be returned.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="AcknowledgeScreeningOrderDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:AcknowledgeScreeningOrder
