Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: AlcoholScreeningReport
Namespace: http://www.hr-xml.org/3
Type: nsA:AlcoholScreeningReportType
Containing Schema: ScreeningReport.xsd
Abstract
Collapse XSD Schema Diagram:

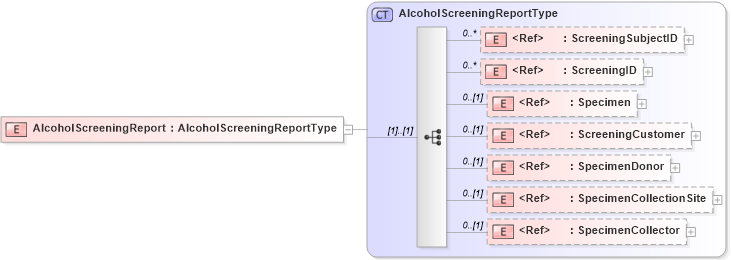

Drilldown into SpecimenCollector in schema components_xsd Drilldown into SpecimenCollectionSite in schema components_xsd Drilldown into SpecimenDonor in schema components_xsd Drilldown into ScreeningCustomer in schema components_xsd Drilldown into Specimen in schema components_xsd Drilldown into ScreeningID in schema fields_xsd Drilldown into ScreeningSubjectID in schema fields_xsd Drilldown into AlcoholScreeningReportType in schema screeningreport_xsdXSD Diagram of AlcoholScreeningReport in schema screeningreport_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="AlcoholScreeningReport" type="AlcoholScreeningReportType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScreeningSubjectID nsA:ScreeningSubjectID 0 unbounded
ScreeningID nsA:ScreeningID 0 unbounded
Specimen nsA:Specimen 0 (1)
ScreeningCustomer nsA:ScreeningCustomer 0 (1)
SpecimenDonor nsA:SpecimenDonor 0 (1)
SpecimenCollectionSite nsA:SpecimenCollectionSite 0 (1)
SpecimenCollector nsA:SpecimenCollector 0 (1)
Collapse Derivation Tree:
