Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ApplicationMethodType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
ABIE ApplicationMethod .Details Instructions on how to apply for the posting.

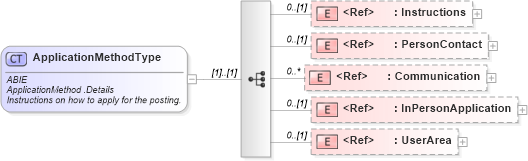

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into InPersonApplication in schema components_xsd Drilldown into Communication in schema components_xsd Drilldown into PersonContact in schema components_xsd Drilldown into Instructions in schema fields_xsdXSD Diagram of ApplicationMethodType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ApplicationMethodType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">ABIE</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">ApplicationMethod .Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Instructions on how to apply for the posting.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="Instructions" minOccurs="0" />
        <xsd:element ref="PersonContact" minOccurs="0" />
        <xsd:element ref="Communication" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="InPersonApplication" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Instructions nsA:Instructions 0 (1)
PersonContact nsA:PersonContact 0 (1)
Communication nsA:Communication 0 unbounded
InPersonApplication nsA:InPersonApplication 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ApplicationMethod
