Definition Type: ComplexType
Name: ApproverType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Approver . Details Contains information about a person's approval of an entity (report, document, time card, etc.).

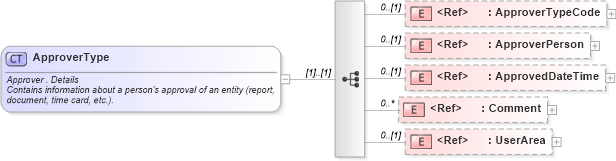

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into ApprovedDateTime in schema fields_xsd Drilldown into ApproverPerson in schema components_xsd Drilldown into ApproverTypeCode in schema fields_xsdXSD Diagram of ApproverType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ApproverType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Approver . Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains information about a person's approval of an entity (report, document, time card, etc.).</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ApproverTypeCode" minOccurs="0" />
        <xsd:element ref="ApproverPerson" minOccurs="0" />
        <xsd:element ref="ApprovedDateTime" minOccurs="0" />
        <xsd:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApproverTypeCode nsA:ApproverTypeCode 0 (1)
ApproverPerson nsA:ApproverPerson 0 (1)
ApprovedDateTime nsA:ApprovedDateTime 0 (1)
Comment nsA:Comment 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:Approver
