Definition Type: ComplexType
Name: AssessmentResultType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Contains various scoring details and related metadata to interpret the scores.

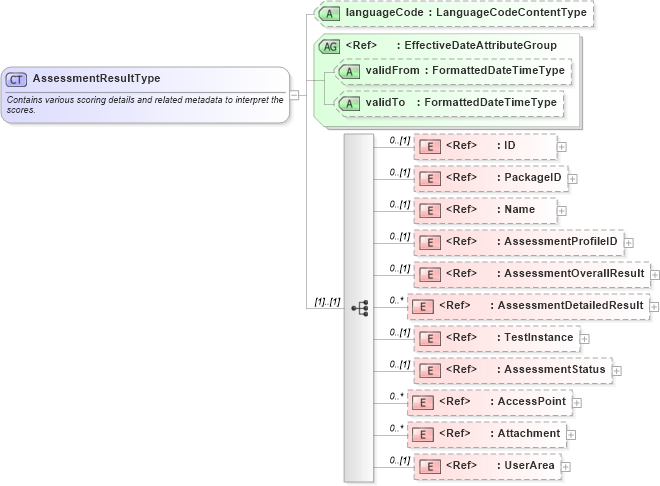

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into AccessPoint in schema components_xsd Drilldown into AssessmentStatus in schema components_xsd Drilldown into TestInstance in schema components_xsd Drilldown into AssessmentDetailedResult in schema components_xsd Drilldown into AssessmentOverallResult in schema components_xsd Drilldown into AssessmentProfileID in schema fields_xsd Drilldown into Name in schema fields_xsd1 Drilldown into PackageID in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema components_xsdXSD Diagram of AssessmentResultType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AssessmentResultType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">Contains various scoring details and related metadata to interpret the scores.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This is an identifier for the result. There may be a one-to-one relationship between a PackageID ordered and a result. However, some packages might bundle multiple tests or have multiple results ensuing from them. This might be an identifier related to a component test within the package. The schemeID could be used to identify the particular identifier employed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PackageID" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This is a reference to the Package ID that was ordered.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="oa:Name" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This is a place to put any formal name or identifier for the result. This might be a pass-through value tied to the specific test instrument. For example, "Candian Academic English Language (CAEL) Official Score Report." </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AssessmentProfileID" minOccurs="0" />
        <xsd:element ref="AssessmentOverallResult" minOccurs="0" />
        <xsd:element ref="AssessmentDetailedResult" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TestInstance" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This is a set of Metadata regarding the test instance itself. The class or type of test taken is something known or discoverable from the PackageID or underlying TestID. TestInstance is a set of information about the test instance actually taken by the assessment subject. Many tests have multiple versions. This metadata supports the association of the score to the particular test instance actually completed and scored.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AssessmentStatus" minOccurs="0" />
        <xsd:element ref="AccessPoint" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Attachment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
PackageID nsA:PackageID 0 (1)
Name oa:Name 0 (1)
AssessmentProfileID nsA:AssessmentProfileID 0 (1)
AssessmentOverallResult nsA:AssessmentOverallResult 0 (1)
AssessmentDetailedResult nsA:AssessmentDetailedResult 0 unbounded
TestInstance nsA:TestInstance 0 (1)
AssessmentStatus nsA:AssessmentStatus 0 (1)
AccessPoint nsA:AccessPoint 0 unbounded
Attachment nsA:Attachment 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode (Optional)
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:AssessmentResult
