Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: BenefitsCoordination
Namespace: http://www.hr-xml.org/3
Type: nsA:BenefitsCoordinationType
Containing Schema: Components.xsd
Abstract

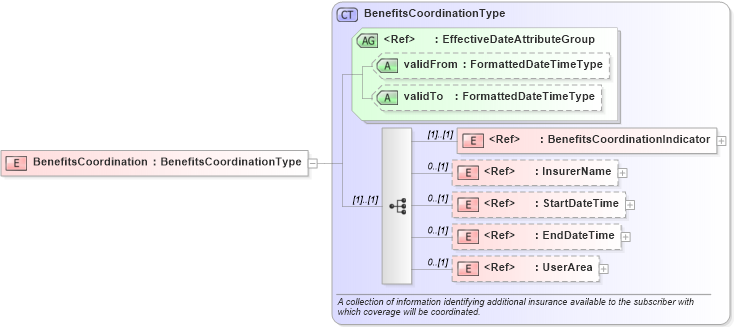

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into EndDateTime in schema fields_xsd Drilldown into StartDateTime in schema fields_xsd Drilldown into InsurerName in schema fields_xsd Drilldown into BenefitsCoordinationIndicator in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into BenefitsCoordinationType in schema components_xsdXSD Diagram of BenefitsCoordination in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="BenefitsCoordination" type="BenefitsCoordinationType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BenefitsCoordinationIndicator nsA:BenefitsCoordinationIndicator (1) (1)
InsurerName nsA:InsurerName 0 (1)
StartDateTime nsA:StartDateTime 0 (1)
EndDateTime nsA:EndDateTime 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
