Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CancelHRMasterDataType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: CancelHRMasterData.xsd
Abstract
Documentation:
CancelHRMasterData conveys an instruction to cancel a previously communicated HRMasterData instance. Cancel is not a simple delete in that cancelation may require business calculations and require prior agreement on cancelation terms. HRMasterData Contains a broad set of information about a human resource. HRMasterData is not limited to a particular domain (for example, EPMParticipant and IndicativeData). Used to provision or synchronize data between and among HR systems. Cancel is an "Action Verb". ActionExpression(s) represent and communicate data management instructions. The data entities being managed are represented as elements of the HRMasterData noun in the BOD instance. The Cancel verb is used when the sender of the BOD is not the owner of the data, but is sending a request for the document to be canceled.

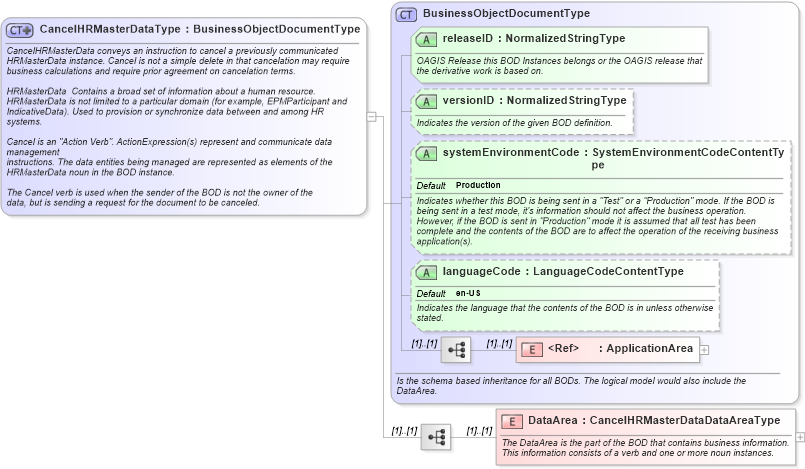

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema cancelhrmasterdata_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of CancelHRMasterDataType in schema cancelhrmasterdata_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CancelHRMasterDataType">
    <xsd:annotation>
        <xsd:documentation>
       CancelHRMasterData conveys an instruction to cancel a previously communicated HRMasterData instance. Cancel is not a simple delete in that cancelation may require business calculations and require prior agreement on cancelation terms.

       HRMasterData  Contains a broad set of information about a human resource. HRMasterData is not limited to a particular domain (for example, EPMParticipant and IndicativeData). Used to provision or synchronize data between and among HR systems.

       Cancel is an "Action Verb". ActionExpression(s) represent and communicate data management
       instructions. The data entities being managed are represented as elements of the HRMasterData noun in the BOD instance.

       The Cancel verb is used when the sender of the BOD is not the owner of the
       data, but is sending a request for the document to be canceled.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="CancelHRMasterDataDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:CancelHRMasterData
