Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Cheque
Namespace: http://www.openapplications.org/oagis/9
Type: oa:ChequeType
Containing Schema: Components.xsd
Abstract

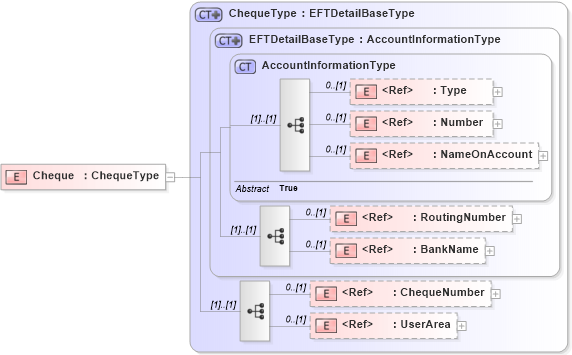

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into ChequeNumber in schema fields_xsd1 Drilldown into BankName in schema fields_xsd1 Drilldown into RoutingNumber in schema fields_xsd1 Drilldown into NameOnAccount in schema fields_xsd1 Drilldown into Number in schema fields_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into AccountInformationType in schema components_xsd1 Drilldown into EFTDetailBaseType in schema components_xsd1 Drilldown into ChequeType in schema components_xsd1XSD Diagram of Cheque in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Cheque" type="ChequeType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Type oa:Type 0 (1)
Number oa:Number 0 (1)
NameOnAccount oa:NameOnAccount 0 (1)
RoutingNumber oa:RoutingNumber 0 (1)
BankName oa:BankName 0 (1)
ChequeNumber oa:ChequeNumber 0 (1)
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
