Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CommunicationType
Namespace: http://www.openapplications.org/oagis/9
Type: oa:CommunicationABIEType
Containing Schema: Components.xsd
Abstract

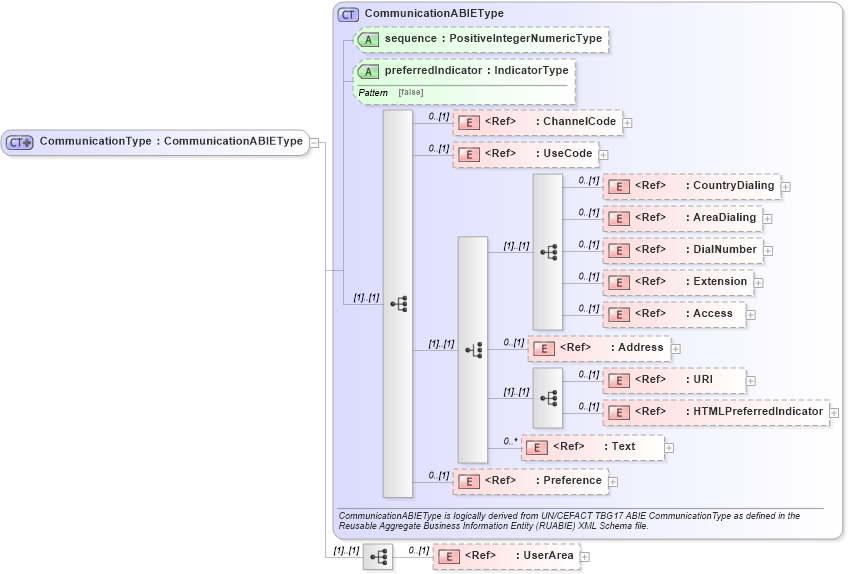

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into Preference in schema components_xsd1 Drilldown into Text in schema fields_xsd1 Drilldown into HTMLPreferredIndicator in schema fields_xsd1 Drilldown into URI in schema fields_xsd1 Drilldown into Address in schema components_xsd1 Drilldown into Access in schema fields_xsd1 Drilldown into Extension in schema fields_xsd1 Drilldown into DialNumber in schema fields_xsd1 Drilldown into AreaDialing in schema fields_xsd1 Drilldown into CountryDialing in schema fields_xsd1 Drilldown into UseCode in schema fields_xsd1 Drilldown into ChannelCode in schema fields_xsd1 Drilldown into preferredIndicator in schema components_xsd1 Drilldown into sequence in schema components_xsd1 Drilldown into CommunicationABIEType in schema components_xsd1XSD Diagram of CommunicationType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CommunicationType">
    <xsd:complexContent>
        <xsd:extension base="CommunicationABIEType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ChannelCode oa:ChannelCode 0 (1)
UseCode oa:UseCode 0 (1)
CountryDialing oa:CountryDialing 0 (1)
AreaDialing oa:AreaDialing 0 (1)
DialNumber oa:DialNumber 0 (1)
Extension oa:Extension 0 (1)
Access oa:Access 0 (1)
Address oa:Address 0 (1)
URI oa:URI 0 (1)
HTMLPreferredIndicator oa:HTMLPreferredIndicator 0 (1)
Text oa:Text 0 unbounded
Preference oa:Preference 0 (1)
UserArea oa:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
sequence oa:sequence (Optional)
preferredIndicator oa:preferredIndicator (Optional)
Collapse Derivation Tree:
Collapse References:
oa:Communication
