Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CompetencyEvidenceRequirementsType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
A policy setting out competency requirements associated with a position or other entity.

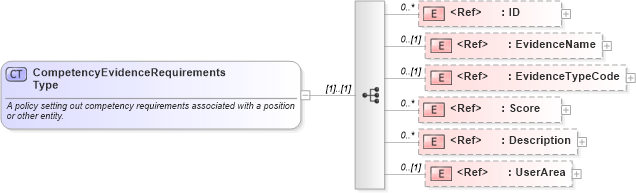

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Description in schema fields_xsd1 Drilldown into Score in schema components_xsd Drilldown into EvidenceTypeCode in schema fields_xsd Drilldown into EvidenceName in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of CompetencyEvidenceRequirementsType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CompetencyEvidenceRequirementsType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A policy setting out competency requirements associated with a position or other entity.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="EvidenceName" minOccurs="0" />
        <xsd:element ref="EvidenceTypeCode" minOccurs="0" />
        <xsd:element ref="Score" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="oa:Description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
EvidenceName nsA:EvidenceName 0 (1)
EvidenceTypeCode nsA:EvidenceTypeCode 0 (1)
Score nsA:Score 0 unbounded
Description oa:Description 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:CompetencyEvidenceRequirements
