Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CompetencySectionType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
ABIE Competency Section .Details A section of a performance appraisal for evaluations of competencies, including behavioral indicators.

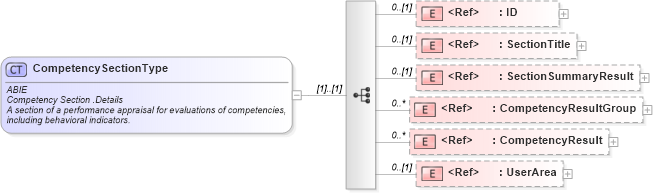

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into CompetencyResult in schema components_xsd Drilldown into CompetencyResultGroup in schema components_xsd Drilldown into SectionSummaryResult in schema components_xsd Drilldown into SectionTitle in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of CompetencySectionType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CompetencySectionType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">ABIE</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Competency Section .Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A section of a performance appraisal for evaluations of competencies, including behavioral indicators.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="SectionTitle" minOccurs="0" />
        <xsd:element ref="SectionSummaryResult" minOccurs="0" />
        <xsd:element ref="CompetencyResultGroup" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CompetencyResult" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
SectionTitle nsA:SectionTitle 0 (1)
SectionSummaryResult nsA:SectionSummaryResult 0 (1)
CompetencyResultGroup nsA:CompetencyResultGroup 0 unbounded
CompetencyResult nsA:CompetencyResult 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:CompetencySection
