Definition Type: ComplexType
Name: ContactType
Namespace: http://www.openapplications.org/oagis/9
Type: oa:SemanticContactType
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

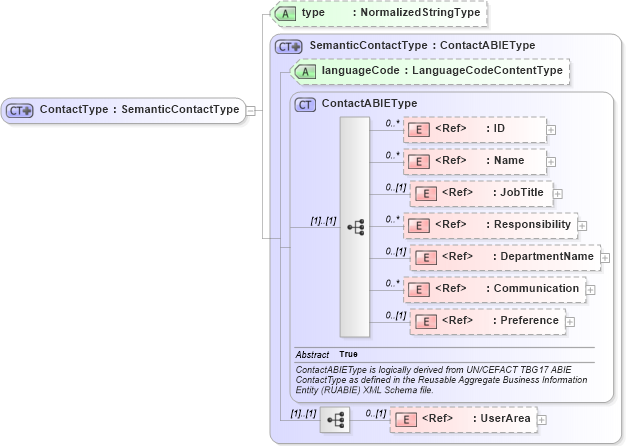

Drilldown into UserArea in schema fields_xsd1 Drilldown into Preference in schema components_xsd1 Drilldown into Communication in schema components_xsd1 Drilldown into DepartmentName in schema fields_xsd1 Drilldown into Responsibility in schema fields_xsd1 Drilldown into JobTitle in schema fields_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into ContactABIEType in schema components_xsd1 Drilldown into languageCode in schema components_xsd1 Drilldown into SemanticContactType in schema components_xsd1 Drilldown into type in schema components_xsd1XSD Diagram of ContactType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ContactType">
    <xsd:complexContent>
        <xsd:extension base="SemanticContactType">
            <xsd:attribute name="type" type="NormalizedStringType" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oa:ID 0 unbounded
Name oa:Name 0 unbounded
JobTitle oa:JobTitle 0 (1)
Responsibility oa:Responsibility 0 unbounded
DepartmentName oa:DepartmentName 0 (1)
Communication oa:Communication 0 unbounded
Preference oa:Preference 0 (1)
UserArea oa:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode oa:languageCode (Optional)
type oa:type Optional
Collapse Derivation Tree:
Collapse References:
oa:AssignedToContact, oa:Contact, oa:EmergencyContact, oa:InspectorContact, oa:SalesPerson
