Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CreditFilePersonType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

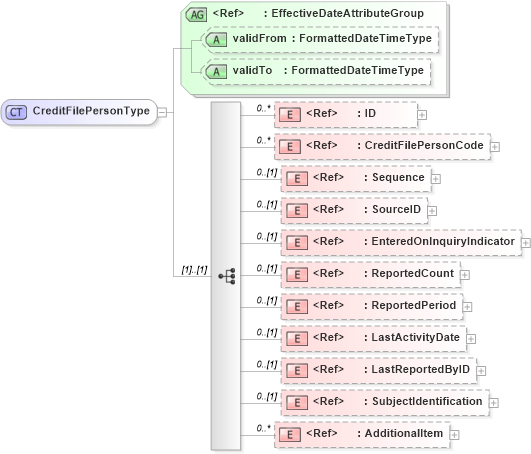

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into SubjectIdentification in schema components_xsd Drilldown into LastReportedByID in schema fields_xsd Drilldown into LastActivityDate in schema fields_xsd Drilldown into ReportedPeriod in schema components_xsd Drilldown into ReportedCount in schema fields_xsd Drilldown into EnteredOnInquiryIndicator in schema fields_xsd Drilldown into SourceID in schema fields_xsd Drilldown into Sequence in schema fields_xsd1 Drilldown into CreditFilePersonCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of CreditFilePersonType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CreditFilePersonType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditFilePersonCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="oa:Sequence" minOccurs="0" />
        <xsd:element ref="SourceID" minOccurs="0" />
        <xsd:element ref="EnteredOnInquiryIndicator" minOccurs="0" />
        <xsd:element ref="ReportedCount" minOccurs="0" />
        <xsd:element ref="ReportedPeriod" minOccurs="0" />
        <xsd:element ref="LastActivityDate" minOccurs="0" />
        <xsd:element ref="LastReportedByID" minOccurs="0" />
        <xsd:element ref="SubjectIdentification" minOccurs="0" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
CreditFilePersonCode nsA:CreditFilePersonCode 0 unbounded
Sequence oa:Sequence 0 (1)
SourceID nsA:SourceID 0 (1)
EnteredOnInquiryIndicator nsA:EnteredOnInquiryIndicator 0 (1)
ReportedCount nsA:ReportedCount 0 (1)
ReportedPeriod nsA:ReportedPeriod 0 (1)
LastActivityDate nsA:LastActivityDate 0 (1)
LastReportedByID nsA:LastReportedByID 0 (1)
SubjectIdentification nsA:SubjectIdentification 0 (1)
AdditionalItem nsA:AdditionalItem 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:CreditFilePerson, nsA:CreditFilePersonAlias
