Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CreditFileType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

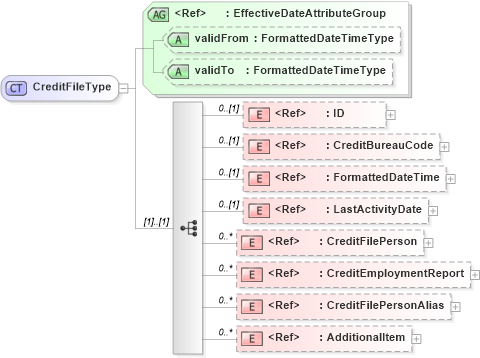

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into CreditFilePersonAlias in schema components_xsd Drilldown into CreditEmploymentReport in schema components_xsd Drilldown into CreditFilePerson in schema components_xsd Drilldown into LastActivityDate in schema fields_xsd Drilldown into FormattedDateTime in schema fields_xsd Drilldown into CreditBureauCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of CreditFileType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CreditFileType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="CreditBureauCode" minOccurs="0" />
        <xsd:element ref="FormattedDateTime" minOccurs="0" />
        <xsd:element ref="LastActivityDate" minOccurs="0" />
        <xsd:element ref="CreditFilePerson" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditEmploymentReport" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditFilePersonAlias" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
CreditBureauCode nsA:CreditBureauCode 0 (1)
FormattedDateTime nsA:FormattedDateTime 0 (1)
LastActivityDate nsA:LastActivityDate 0 (1)
CreditFilePerson nsA:CreditFilePerson 0 unbounded
CreditEmploymentReport nsA:CreditEmploymentReport 0 unbounded
CreditFilePersonAlias nsA:CreditFilePersonAlias 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:CreditFile
