Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CreditSummaryType
Namespace: http://www.hr-xml.org/3
Containing Schema: CreditResult.xsd
Abstract

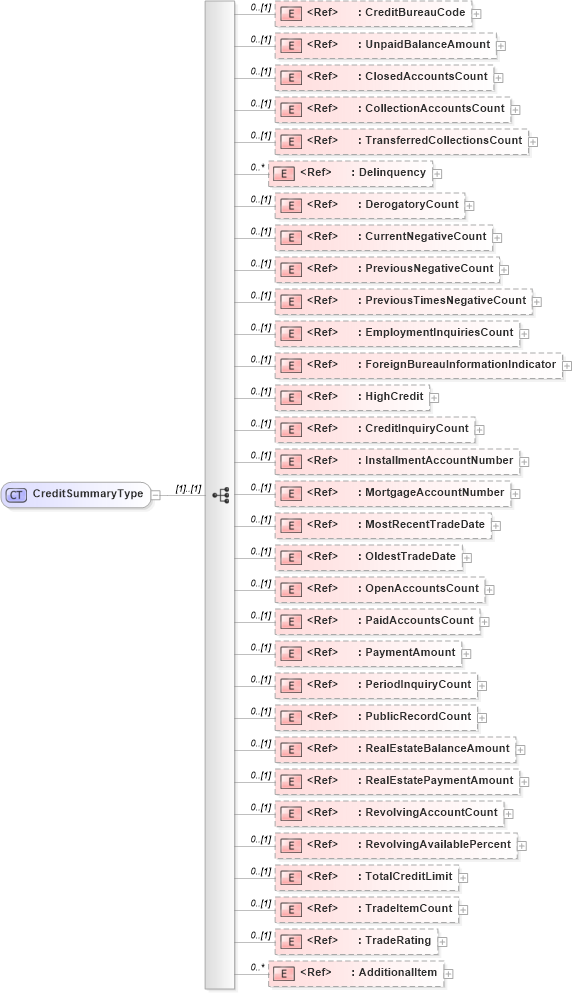

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into TradeRating in schema creditresult_xsd Drilldown into TradeItemCount in schema fields_xsd Drilldown into TotalCreditLimit in schema creditresult_xsd Drilldown into RevolvingAvailablePercent in schema fields_xsd Drilldown into RevolvingAccountCount in schema fields_xsd Drilldown into RealEstatePaymentAmount in schema fields_xsd Drilldown into RealEstateBalanceAmount in schema fields_xsd Drilldown into PublicRecordCount in schema fields_xsd Drilldown into PeriodInquiryCount in schema fields_xsd Drilldown into PaymentAmount in schema creditresult_xsd Drilldown into PaidAccountsCount in schema fields_xsd Drilldown into OpenAccountsCount in schema fields_xsd Drilldown into OldestTradeDate in schema fields_xsd Drilldown into MostRecentTradeDate in schema fields_xsd Drilldown into MortgageAccountNumber in schema fields_xsd Drilldown into InstallmentAccountNumber in schema fields_xsd Drilldown into CreditInquiryCount in schema fields_xsd Drilldown into HighCredit in schema creditresult_xsd Drilldown into ForeignBureauInformationIndicator in schema fields_xsd Drilldown into EmploymentInquiriesCount in schema fields_xsd Drilldown into PreviousTimesNegativeCount in schema fields_xsd Drilldown into PreviousNegativeCount in schema fields_xsd Drilldown into CurrentNegativeCount in schema fields_xsd Drilldown into DerogatoryCount in schema fields_xsd Drilldown into Delinquency in schema components_xsd Drilldown into TransferredCollectionsCount in schema fields_xsd Drilldown into CollectionAccountsCount in schema fields_xsd Drilldown into ClosedAccountsCount in schema fields_xsd Drilldown into UnpaidBalanceAmount in schema fields_xsd Drilldown into CreditBureauCode in schema fields_xsdXSD Diagram of CreditSummaryType in schema creditresult_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CreditSummaryType">
    <xsd:sequence>
        <xsd:element ref="CreditBureauCode" minOccurs="0" />
        <xsd:element ref="UnpaidBalanceAmount" minOccurs="0" />
        <xsd:element ref="ClosedAccountsCount" minOccurs="0" />
        <xsd:element ref="CollectionAccountsCount" minOccurs="0" />
        <xsd:element ref="TransferredCollectionsCount" minOccurs="0" />
        <xsd:element ref="Delinquency" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>The number of times the liability account was reported  delinquent by the liability holder.  This count will typically cover 30, 60 and 90 days.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DerogatoryCount" minOccurs="0" />
        <xsd:element ref="CurrentNegativeCount" minOccurs="0" />
        <xsd:element ref="PreviousNegativeCount" minOccurs="0" />
        <xsd:element ref="PreviousTimesNegativeCount" minOccurs="0" />
        <xsd:element ref="EmploymentInquiriesCount" minOccurs="0" />
        <xsd:element ref="ForeignBureauInformationIndicator" minOccurs="0" />
        <xsd:element ref="HighCredit" minOccurs="0" />
        <xsd:element ref="CreditInquiryCount" minOccurs="0" />
        <xsd:element ref="InstallmentAccountNumber" minOccurs="0" />
        <xsd:element ref="MortgageAccountNumber" minOccurs="0" />
        <xsd:element ref="MostRecentTradeDate" minOccurs="0" />
        <xsd:element ref="OldestTradeDate" minOccurs="0" />
        <xsd:element ref="OpenAccountsCount" minOccurs="0" />
        <xsd:element ref="PaidAccountsCount" minOccurs="0" />
        <xsd:element ref="PaymentAmount" minOccurs="0" />
        <xsd:element ref="PeriodInquiryCount" minOccurs="0" />
        <xsd:element ref="PublicRecordCount" minOccurs="0" />
        <xsd:element ref="RealEstateBalanceAmount" minOccurs="0" />
        <xsd:element ref="RealEstatePaymentAmount" minOccurs="0" />
        <xsd:element ref="RevolvingAccountCount" minOccurs="0" />
        <xsd:element ref="RevolvingAvailablePercent" minOccurs="0" />
        <xsd:element ref="TotalCreditLimit" minOccurs="0" />
        <xsd:element ref="TradeItemCount" minOccurs="0" />
        <xsd:element ref="TradeRating" minOccurs="0" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CreditBureauCode nsA:CreditBureauCode 0 (1)
UnpaidBalanceAmount nsA:UnpaidBalanceAmount 0 (1)
ClosedAccountsCount nsA:ClosedAccountsCount 0 (1)
CollectionAccountsCount nsA:CollectionAccountsCount 0 (1)
TransferredCollectionsCount nsA:TransferredCollectionsCount 0 (1)
Delinquency nsA:Delinquency 0 unbounded
DerogatoryCount nsA:DerogatoryCount 0 (1)
CurrentNegativeCount nsA:CurrentNegativeCount 0 (1)
PreviousNegativeCount nsA:PreviousNegativeCount 0 (1)
PreviousTimesNegativeCount nsA:PreviousTimesNegativeCount 0 (1)
EmploymentInquiriesCount nsA:EmploymentInquiriesCount 0 (1)
ForeignBureauInformationIndicator nsA:ForeignBureauInformationIndicator 0 (1)
HighCredit nsA:HighCredit 0 (1)
CreditInquiryCount nsA:CreditInquiryCount 0 (1)
InstallmentAccountNumber nsA:InstallmentAccountNumber 0 (1)
MortgageAccountNumber nsA:MortgageAccountNumber 0 (1)
MostRecentTradeDate nsA:MostRecentTradeDate 0 (1)
OldestTradeDate nsA:OldestTradeDate 0 (1)
OpenAccountsCount nsA:OpenAccountsCount 0 (1)
PaidAccountsCount nsA:PaidAccountsCount 0 (1)
PaymentAmount nsA:PaymentAmount 0 (1)
PeriodInquiryCount nsA:PeriodInquiryCount 0 (1)
PublicRecordCount nsA:PublicRecordCount 0 (1)
RealEstateBalanceAmount nsA:RealEstateBalanceAmount 0 (1)
RealEstatePaymentAmount nsA:RealEstatePaymentAmount 0 (1)
RevolvingAccountCount nsA:RevolvingAccountCount 0 (1)
RevolvingAvailablePercent nsA:RevolvingAvailablePercent 0 (1)
TotalCreditLimit nsA:TotalCreditLimit 0 (1)
TradeItemCount nsA:TradeItemCount 0 (1)
TradeRating nsA:TradeRating 0 (1)
AdditionalItem nsA:AdditionalItem 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:CreditSummary
