Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CriminalReportType
Namespace: http://www.hr-xml.org/3
Containing Schema: ScreeningReport.xsd
Abstract

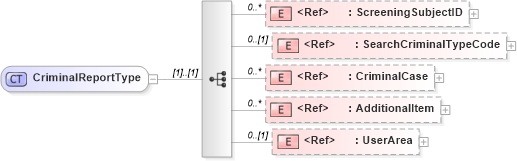

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AdditionalItem in schema components_xsd Drilldown into CriminalCase in schema components_xsd Drilldown into SearchCriminalTypeCode in schema fields_xsd Drilldown into ScreeningSubjectID in schema fields_xsdXSD Diagram of CriminalReportType in schema screeningreport_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CriminalReportType">
    <xsd:sequence>
        <xsd:element ref="ScreeningSubjectID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SearchCriminalTypeCode" minOccurs="0" />
        <xsd:element ref="CriminalCase" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScreeningSubjectID nsA:ScreeningSubjectID 0 unbounded
SearchCriminalTypeCode nsA:SearchCriminalTypeCode 0 (1)
CriminalCase nsA:CriminalCase 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:CriminalReport
