Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: CustomerReportingRequirementsType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

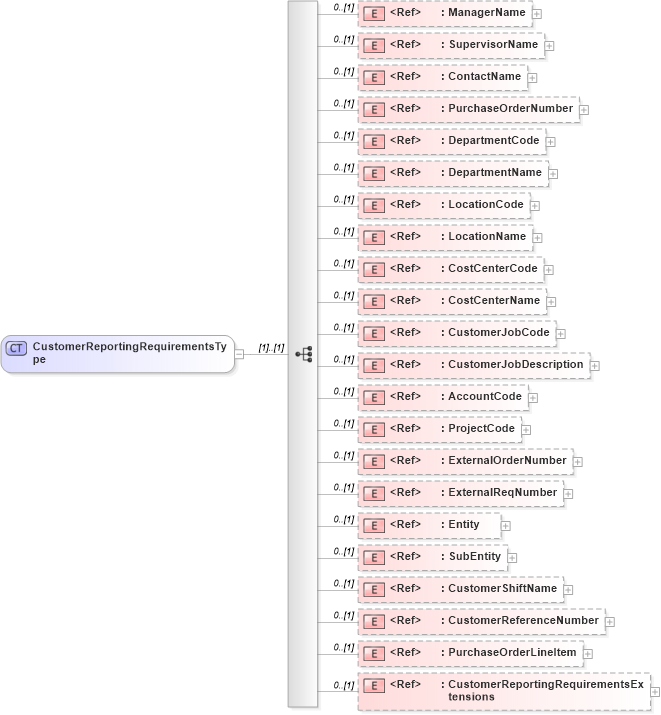

Collapse XSD Schema Diagram:
Drilldown into CustomerReportingRequirementsExtensions in schema components_xsd Drilldown into PurchaseOrderLineItem in schema fields_xsd Drilldown into CustomerReferenceNumber in schema fields_xsd Drilldown into CustomerShiftName in schema fields_xsd Drilldown into SubEntity in schema fields_xsd Drilldown into Entity in schema fields_xsd Drilldown into ExternalReqNumber in schema fields_xsd Drilldown into ExternalOrderNumber in schema fields_xsd Drilldown into ProjectCode in schema fields_xsd Drilldown into AccountCode in schema fields_xsd Drilldown into CustomerJobDescription in schema fields_xsd Drilldown into CustomerJobCode in schema fields_xsd Drilldown into CostCenterName in schema fields_xsd Drilldown into CostCenterCode in schema fields_xsd Drilldown into LocationName in schema fields_xsd Drilldown into LocationCode in schema fields_xsd Drilldown into DepartmentName in schema fields_xsd Drilldown into DepartmentCode in schema fields_xsd Drilldown into PurchaseOrderNumber in schema fields_xsd Drilldown into ContactName in schema fields_xsd Drilldown into SupervisorName in schema fields_xsd Drilldown into ManagerName in schema fields_xsdXSD Diagram of CustomerReportingRequirementsType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CustomerReportingRequirementsType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ManagerName" minOccurs="0" />
        <xsd:element ref="SupervisorName" minOccurs="0" />
        <xsd:element ref="ContactName" minOccurs="0" />
        <xsd:element ref="PurchaseOrderNumber" minOccurs="0" />
        <xsd:element ref="DepartmentCode" minOccurs="0" />
        <xsd:element ref="DepartmentName" minOccurs="0" />
        <xsd:element ref="LocationCode" minOccurs="0" />
        <xsd:element ref="LocationName" minOccurs="0" />
        <xsd:element ref="CostCenterCode" minOccurs="0" />
        <xsd:element ref="CostCenterName" minOccurs="0" />
        <xsd:element ref="CustomerJobCode" minOccurs="0" />
        <xsd:element ref="CustomerJobDescription" minOccurs="0" />
        <xsd:element ref="AccountCode" minOccurs="0" />
        <xsd:element ref="ProjectCode" minOccurs="0" />
        <xsd:element ref="ExternalOrderNumber" minOccurs="0" />
        <xsd:element ref="ExternalReqNumber" minOccurs="0" />
        <xsd:element ref="Entity" minOccurs="0" />
        <xsd:element ref="SubEntity" minOccurs="0" />
        <xsd:element ref="CustomerShiftName" minOccurs="0" />
        <xsd:element ref="CustomerReferenceNumber" minOccurs="0" />
        <xsd:element ref="PurchaseOrderLineItem" minOccurs="0" />
        <xsd:element ref="CustomerReportingRequirementsExtensions" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ManagerName nsA:ManagerName 0 (1)
SupervisorName nsA:SupervisorName 0 (1)
ContactName nsA:ContactName 0 (1)
PurchaseOrderNumber nsA:PurchaseOrderNumber 0 (1)
DepartmentCode nsA:DepartmentCode 0 (1)
DepartmentName nsA:DepartmentName 0 (1)
LocationCode nsA:LocationCode 0 (1)
LocationName nsA:LocationName 0 (1)
CostCenterCode nsA:CostCenterCode 0 (1)
CostCenterName nsA:CostCenterName 0 (1)
CustomerJobCode nsA:CustomerJobCode 0 (1)
CustomerJobDescription nsA:CustomerJobDescription 0 (1)
AccountCode nsA:AccountCode 0 (1)
ProjectCode nsA:ProjectCode 0 (1)
ExternalOrderNumber nsA:ExternalOrderNumber 0 (1)
ExternalReqNumber nsA:ExternalReqNumber 0 (1)
Entity nsA:Entity 0 (1)
SubEntity nsA:SubEntity 0 (1)
CustomerShiftName nsA:CustomerShiftName 0 (1)
CustomerReferenceNumber nsA:CustomerReferenceNumber 0 (1)
PurchaseOrderLineItem nsA:PurchaseOrderLineItem 0 (1)
CustomerReportingRequirementsExtensions nsA:CustomerReportingRequirementsExtensions 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:CustomerReportingRequirements
