Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: DataArea
Namespace: http://www.hr-xml.org/3
Type: nsA:CancelScreeningOrderDataAreaType
Containing Schema: CancelScreeningOrder.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.

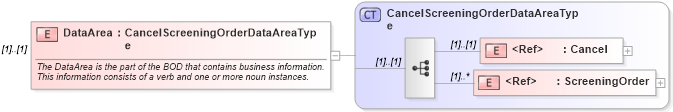

Collapse XSD Schema Diagram:
Drilldown into ScreeningOrder in schema screeningorder_xsd Drilldown into Cancel in schema meta_xsd Drilldown into CancelScreeningOrderDataAreaType in schema cancelscreeningorder_xsdXSD Diagram of DataArea in schema cancelscreeningorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="DataArea" type="CancelScreeningOrderDataAreaType">
    <xsd:annotation>
        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Cancel oa:Cancel (1) (1)
ScreeningOrder nsA:ScreeningOrder (1) unbounded
Collapse Derivation Tree:
