Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: DependentPersonDossierType
Namespace: http://www.hr-xml.org/3
Type: nsA:DependentPersonDossierBaseType
Containing Schema: Components.xsd
Abstract

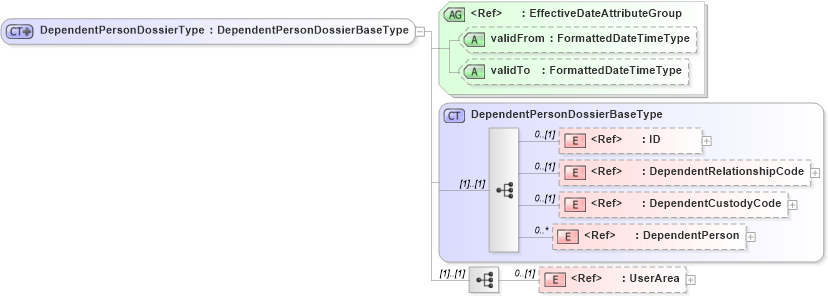

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into DependentPerson in schema components_xsd Drilldown into DependentCustodyCode in schema fields_xsd Drilldown into DependentRelationshipCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into DependentPersonDossierBaseType in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of DependentPersonDossierType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="DependentPersonDossierType">
    <xsd:complexContent>
        <xsd:extension base="DependentPersonDossierBaseType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
            <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
DependentRelationshipCode nsA:DependentRelationshipCode 0 (1)
DependentCustodyCode nsA:DependentCustodyCode 0 (1)
DependentPerson nsA:DependentPerson 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:DependentPersonDossier
