Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: DeploymentBaseType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Indicative_ Human Resource Deployment. Details Contains a collection of information about the "deployment" of a human resource within an employment or work context. The term "deployment" is used to refer to the facts surrounding how and where the human resource is engaged or put to use. Deployment details include information about a resource's job, position, work schedule, assignment entry reason, as well as information identifying the organization and/or organizational sub-units associated with the deployment. Indicative Deployment Details, contains the subclass of deployment details relavent to Indicative Data use cases (e.g., provisioning an benefits outsourcer's system).

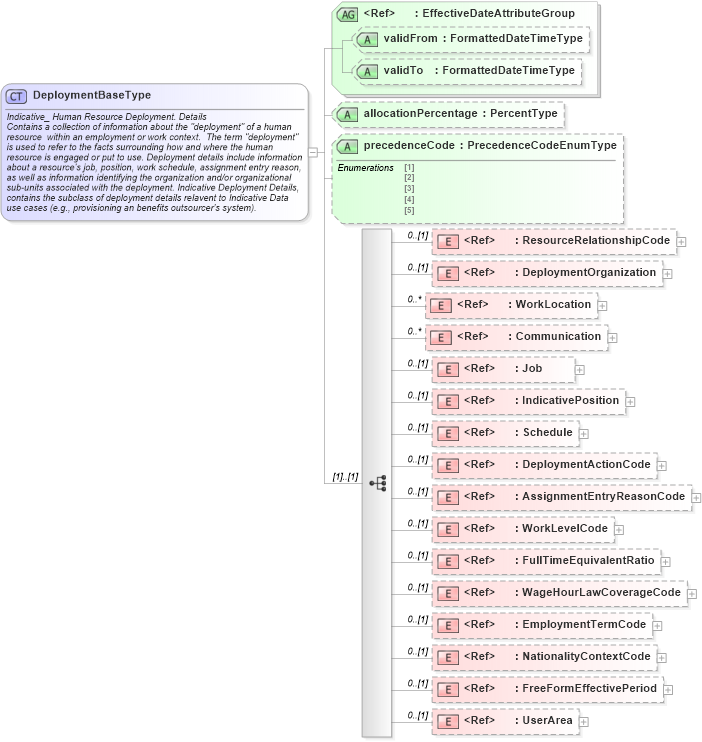

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into FreeFormEffectivePeriod in schema components_xsd Drilldown into NationalityContextCode in schema fields_xsd Drilldown into EmploymentTermCode in schema fields_xsd Drilldown into WageHourLawCoverageCode in schema fields_xsd Drilldown into FullTimeEquivalentRatio in schema fields_xsd Drilldown into WorkLevelCode in schema fields_xsd Drilldown into AssignmentEntryReasonCode in schema fields_xsd Drilldown into DeploymentActionCode in schema fields_xsd Drilldown into Schedule in schema components_xsd Drilldown into IndicativePosition in schema components_xsd Drilldown into Job in schema components_xsd Drilldown into Communication in schema components_xsd Drilldown into WorkLocation in schema components_xsd Drilldown into DeploymentOrganization in schema components_xsd Drilldown into ResourceRelationshipCode in schema fields_xsd Drilldown into precedenceCode in schema components_xsd Drilldown into allocationPercentage in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of DeploymentBaseType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="DeploymentBaseType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Indicative_ Human Resource Deployment. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contains a collection of information about the "deployment" of a human resource  within an employment or work context.  The term "deployment" is used to refer to the facts surrounding how and where the human resource is engaged or put to use. Deployment details include information about a resource's job, position, work schedule, assignment entry reason, as well as information identifying the organization and/or organizational sub-units associated with the deployment. Indicative Deployment Details, contains the subclass of deployment details relavent to Indicative Data use cases (e.g., provisioning an benefits outsourcer's system).</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ResourceRelationshipCode" minOccurs="0" />
        <xsd:element ref="DeploymentOrganization" minOccurs="0" />
        <xsd:element ref="WorkLocation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Communication" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>This contains the resource's work or business contact information. The contact details associated with the deployment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Job" minOccurs="0" />
        <xsd:element ref="IndicativePosition" minOccurs="0" />
        <xsd:element ref="Schedule" minOccurs="0" />
        <xsd:element ref="DeploymentActionCode" minOccurs="0" />
        <xsd:element ref="AssignmentEntryReasonCode" minOccurs="0" />
        <xsd:element ref="WorkLevelCode" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">A code classifying the position as full-time or part-time. Such
determination typically would be made under a policy set by the employer
or applicable collective bargaining agreement.
For example, full-time might be a schedule of at least 37.5 hours per week.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="FullTimeEquivalentRatio" minOccurs="0" />
        <xsd:element ref="WageHourLawCoverageCode" minOccurs="0" />
        <xsd:element ref="EmploymentTermCode" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">A code classifying whether employment is "regular" status (i.e., without a scheduled or known end date) or temporary (employment with a known or scheduled to end). Two optional attributes are available to further classify temporary status employments.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="NationalityContextCode" minOccurs="0" />
        <xsd:element ref="FreeFormEffectivePeriod" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
    <xsd:attribute name="allocationPercentage" type="oa:PercentType" use="optional" />
    <xsd:attribute name="precedenceCode" type="PrecedenceCodeEnumType" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResourceRelationshipCode nsA:ResourceRelationshipCode 0 (1)
DeploymentOrganization nsA:DeploymentOrganization 0 (1)
WorkLocation nsA:WorkLocation 0 unbounded
Communication nsA:Communication 0 unbounded
Job nsA:Job 0 (1)
IndicativePosition nsA:IndicativePosition 0 (1)
Schedule nsA:Schedule 0 (1)
DeploymentActionCode nsA:DeploymentActionCode 0 (1)
AssignmentEntryReasonCode nsA:AssignmentEntryReasonCode 0 (1)
WorkLevelCode nsA:WorkLevelCode 0 (1)
FullTimeEquivalentRatio nsA:FullTimeEquivalentRatio 0 (1)
WageHourLawCoverageCode nsA:WageHourLawCoverageCode 0 (1)
EmploymentTermCode nsA:EmploymentTermCode 0 (1)
NationalityContextCode nsA:NationalityContextCode 0 (1)
FreeFormEffectivePeriod nsA:FreeFormEffectivePeriod 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
allocationPercentage nsA:allocationPercentage Optional
precedenceCode nsA:precedenceCode Optional
Collapse Derivation Tree:
Collapse References:
nsA:AccountHolderDeployment, nsA:IndicativeDeployment, nsA:SubscriberDeployment
