Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: DisabilitySummaryType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
ABIE Disability. Details Describes a disability associated with a specified person. Want of ability to discharge a function. Incapacity in the eye of the law.

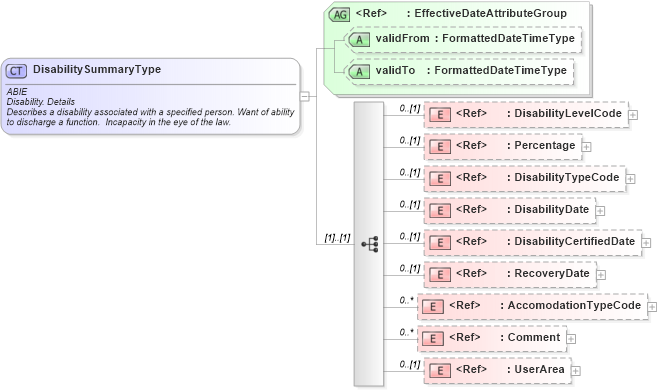

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Comment in schema fields_xsd Drilldown into AccomodationTypeCode in schema fields_xsd Drilldown into RecoveryDate in schema fields_xsd Drilldown into DisabilityCertifiedDate in schema fields_xsd Drilldown into DisabilityDate in schema fields_xsd Drilldown into DisabilityTypeCode in schema fields_xsd Drilldown into Percentage in schema fields_xsd Drilldown into DisabilityLevelCode in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of DisabilitySummaryType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="DisabilitySummaryType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">ABIE</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Disability. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Describes a disability associated with a specified person. Want of ability to discharge a function.  Incapacity in the eye of the law.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="DisabilityLevelCode" minOccurs="0" />
        <xsd:element ref="Percentage" minOccurs="0" />
        <xsd:element ref="DisabilityTypeCode" minOccurs="0" />
        <xsd:element ref="DisabilityDate" minOccurs="0" />
        <xsd:element ref="DisabilityCertifiedDate" minOccurs="0" />
        <xsd:element ref="RecoveryDate" minOccurs="0" />
        <xsd:element ref="AccomodationTypeCode" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DisabilityLevelCode nsA:DisabilityLevelCode 0 (1)
Percentage nsA:Percentage 0 (1)
DisabilityTypeCode nsA:DisabilityTypeCode 0 (1)
DisabilityDate nsA:DisabilityDate 0 (1)
DisabilityCertifiedDate nsA:DisabilityCertifiedDate 0 (1)
RecoveryDate nsA:RecoveryDate 0 (1)
AccomodationTypeCode nsA:AccomodationTypeCode 0 unbounded
Comment nsA:Comment 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:DisabilitySummary
