Definition Type: Element
Name: Distribution
Namespace: http://www.openapplications.org/oagis/9
Type: oa:DistributionType
Containing Schema: Components.xsd
Abstract
Documentation:
The accounting distribution information associated with a Business Object Document. The position of the Distribution within a Business Object Document provides the context and additional meaning.

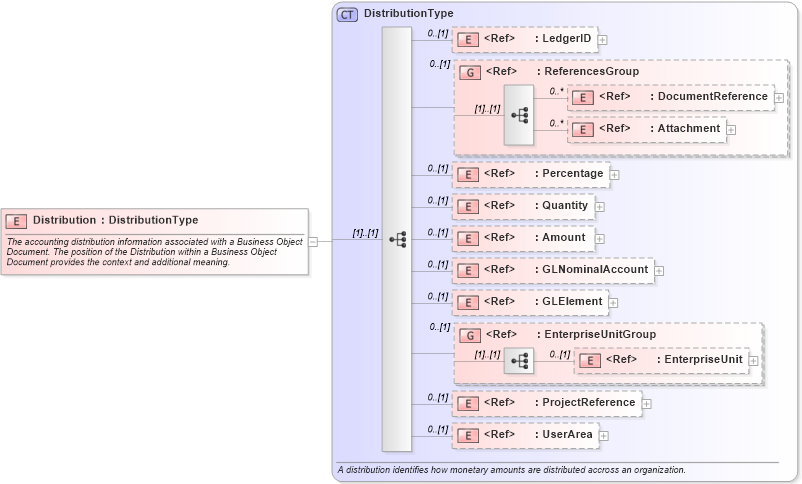

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into ProjectReference in schema components_xsd1 Drilldown into EnterpriseUnit in schema components_xsd1 Drilldown into EnterpriseUnitGroup in schema components_xsd1 Drilldown into GLElement in schema components_xsd1 Drilldown into GLNominalAccount in schema components_xsd1 Drilldown into Amount in schema fields_xsd1 Drilldown into Quantity in schema fields_xsd1 Drilldown into Percentage in schema fields_xsd1 Drilldown into Attachment in schema components_xsd1 Drilldown into DocumentReference in schema components_xsd1 Drilldown into ReferencesGroup in schema components_xsd1 Drilldown into LedgerID in schema fields_xsd1 Drilldown into DistributionType in schema components_xsd1XSD Diagram of Distribution in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Distribution" type="DistributionType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">The accounting distribution information associated with a Business Object Document. The position of the Distribution within a Business Object Document provides the context and additional meaning. </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LedgerID oa:LedgerID 0 (1)
DocumentReference oa:DocumentReference 0 unbounded
Attachment oa:Attachment 0 unbounded
Percentage oa:Percentage 0 (1)
Quantity oa:Quantity 0 (1)
Amount oa:Amount 0 (1)
GLNominalAccount oa:GLNominalAccount 0 (1)
GLElement oa:GLElement 0 (1)
EnterpriseUnit oa:EnterpriseUnit 0 (1)
ProjectReference oa:ProjectReference 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:ReferencesGroup 0 (1)
<xs:group> oa:EnterpriseUnitGroup 0 (1)
Collapse Derivation Tree:
