Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: EducationOrganizationVerificationType
Namespace: http://www.hr-xml.org/3
Type: nsA:EducationOrganizationAttendanceBaseType
Containing Schema: Components.xsd
Abstract

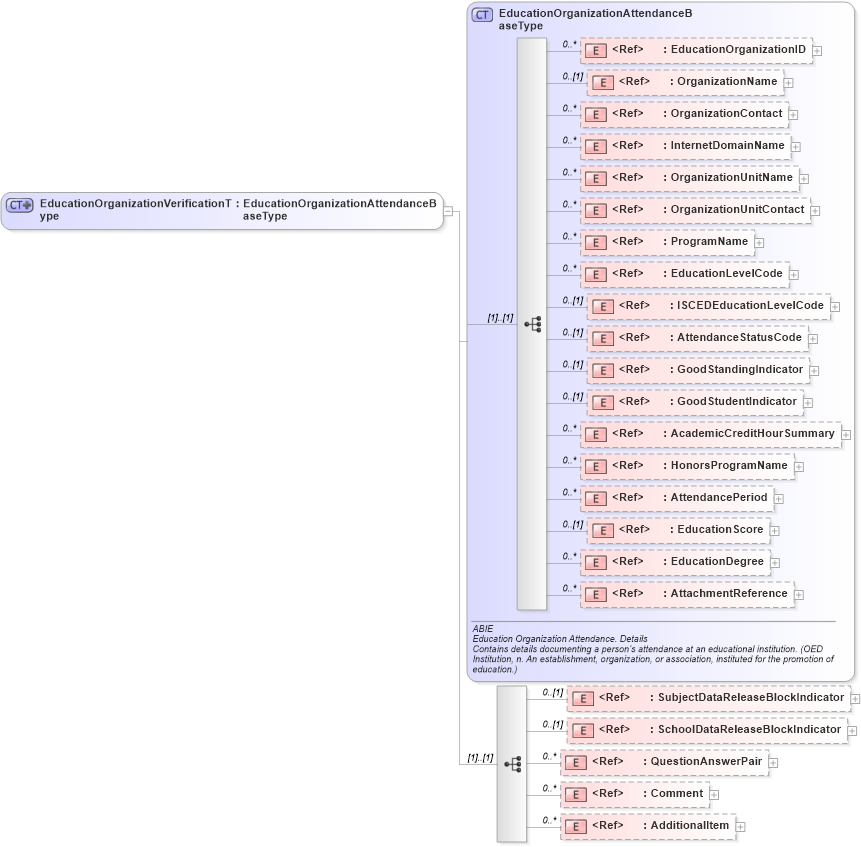

Collapse XSD Schema Diagram:
Drilldown into AdditionalItem in schema components_xsd Drilldown into Comment in schema fields_xsd Drilldown into QuestionAnswerPair in schema components_xsd Drilldown into SchoolDataReleaseBlockIndicator in schema fields_xsd Drilldown into SubjectDataReleaseBlockIndicator in schema fields_xsd Drilldown into AttachmentReference in schema components_xsd Drilldown into EducationDegree in schema components_xsd Drilldown into EducationScore in schema components_xsd Drilldown into AttendancePeriod in schema components_xsd Drilldown into HonorsProgramName in schema fields_xsd Drilldown into AcademicCreditHourSummary in schema components_xsd Drilldown into GoodStudentIndicator in schema fields_xsd Drilldown into GoodStandingIndicator in schema fields_xsd Drilldown into AttendanceStatusCode in schema fields_xsd Drilldown into ISCEDEducationLevelCode in schema fields_xsd Drilldown into EducationLevelCode in schema fields_xsd Drilldown into ProgramName in schema fields_xsd Drilldown into OrganizationUnitContact in schema components_xsd Drilldown into OrganizationUnitName in schema fields_xsd Drilldown into InternetDomainName in schema fields_xsd Drilldown into OrganizationContact in schema components_xsd Drilldown into OrganizationName in schema fields_xsd Drilldown into EducationOrganizationID in schema fields_xsd Drilldown into EducationOrganizationAttendanceBaseType in schema components_xsdXSD Diagram of EducationOrganizationVerificationType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EducationOrganizationVerificationType">
    <xsd:complexContent>
        <xsd:extension base="EducationOrganizationAttendanceBaseType">
            <xsd:sequence>
                <xsd:element ref="SubjectDataReleaseBlockIndicator" minOccurs="0" />
                <xsd:element ref="SchoolDataReleaseBlockIndicator" minOccurs="0" />
                <xsd:element ref="QuestionAnswerPair" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Comment" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EducationOrganizationID nsA:EducationOrganizationID 0 unbounded
OrganizationName nsA:OrganizationName 0 (1)
OrganizationContact nsA:OrganizationContact 0 unbounded
InternetDomainName nsA:InternetDomainName 0 unbounded
OrganizationUnitName nsA:OrganizationUnitName 0 unbounded
OrganizationUnitContact nsA:OrganizationUnitContact 0 unbounded
ProgramName nsA:ProgramName 0 unbounded
EducationLevelCode nsA:EducationLevelCode 0 unbounded
ISCEDEducationLevelCode nsA:ISCEDEducationLevelCode 0 (1)
AttendanceStatusCode nsA:AttendanceStatusCode 0 (1)
GoodStandingIndicator nsA:GoodStandingIndicator 0 (1)
GoodStudentIndicator nsA:GoodStudentIndicator 0 (1)
AcademicCreditHourSummary nsA:AcademicCreditHourSummary 0 unbounded
HonorsProgramName nsA:HonorsProgramName 0 unbounded
AttendancePeriod nsA:AttendancePeriod 0 unbounded
EducationScore nsA:EducationScore 0 (1)
EducationDegree nsA:EducationDegree 0 unbounded
AttachmentReference nsA:AttachmentReference 0 unbounded
SubjectDataReleaseBlockIndicator nsA:SubjectDataReleaseBlockIndicator 0 (1)
SchoolDataReleaseBlockIndicator nsA:SchoolDataReleaseBlockIndicator 0 (1)
QuestionAnswerPair nsA:QuestionAnswerPair 0 unbounded
Comment nsA:Comment 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:EducationOrganizationVerification
