Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: EducationRequirementType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract

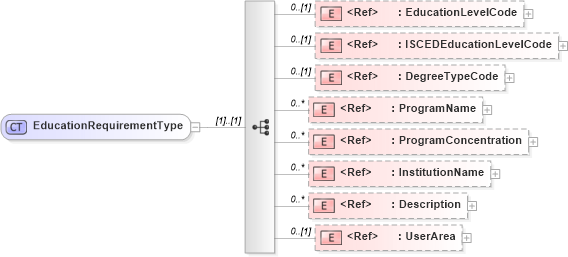

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Description in schema fields_xsd1 Drilldown into InstitutionName in schema fields_xsd Drilldown into ProgramConcentration in schema fields_xsd Drilldown into ProgramName in schema fields_xsd Drilldown into DegreeTypeCode in schema fields_xsd Drilldown into ISCEDEducationLevelCode in schema fields_xsd Drilldown into EducationLevelCode in schema fields_xsdXSD Diagram of EducationRequirementType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EducationRequirementType">
    <xsd:sequence>
        <xsd:element ref="EducationLevelCode" minOccurs="0" />
        <xsd:element ref="ISCEDEducationLevelCode" minOccurs="0" />
        <xsd:element ref="DegreeTypeCode" minOccurs="0" />
        <xsd:element ref="ProgramName" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>In the context of Education Requirements, this
						would be the name of the academic program in which a student participates or was awarded a degree. This generally is a broad category
						such as "Engineering" or "Business Administration." A student may have concentrations within a program. For example, a
						program name of Engineering and a concentration in Electrical Engineering. A program name of Business Administration and
						a concentration of Marketing.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ProgramConcentration" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="InstitutionName" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>In the context of Education Requirements, this
						would be the name of a specific institution (or institutions) specified in education requirements for
						a position.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="oa:Description" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EducationLevelCode nsA:EducationLevelCode 0 (1)
ISCEDEducationLevelCode nsA:ISCEDEducationLevelCode 0 (1)
DegreeTypeCode nsA:DegreeTypeCode 0 (1)
ProgramName nsA:ProgramName 0 unbounded
ProgramConcentration nsA:ProgramConcentration 0 unbounded
InstitutionName nsA:InstitutionName 0 unbounded
Description oa:Description 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:EducationRequirement
