Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: EmploymentHistoryType
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
Abstract
Documentation:
Employment History. Details The prior and current details of a person's employment, work, or relevant experience such as might be reported within a professional profile, CV, resume, employment application, or similar document.

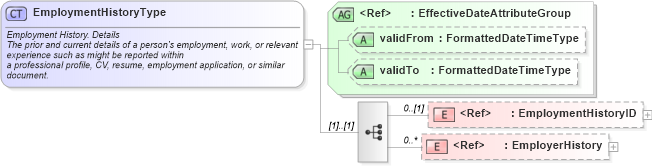

Collapse XSD Schema Diagram:
Drilldown into EmployerHistory in schema components_xsd Drilldown into EmploymentHistoryID in schema fields_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsdXSD Diagram of EmploymentHistoryType in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EmploymentHistoryType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Employment History. Details</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The prior and current details of a person's employment, work, or relevant experience such as might be reported within
				a professional profile, CV, resume, employment application, or similar document.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="EmploymentHistoryID" minOccurs="0" />
        <xsd:element ref="EmployerHistory" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">Details of a particular tenure of employment or work with an organization.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmploymentHistoryID nsA:EmploymentHistoryID 0 (1)
EmployerHistory nsA:EmployerHistory 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:EmploymentHistory, nsA:InputEmploymentHistory
