Definition Type: ComplexType
Name: EnterpriseUnitType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
Identifies the agiven portion of an organization.

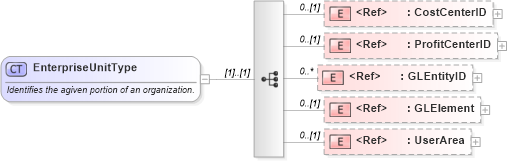

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into GLElement in schema components_xsd1 Drilldown into GLEntityID in schema fields_xsd1 Drilldown into ProfitCenterID in schema fields_xsd1 Drilldown into CostCenterID in schema fields_xsd1XSD Diagram of EnterpriseUnitType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EnterpriseUnitType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/platform/1">Identifies the agiven portion of an organization.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="CostCenterID" minOccurs="0" />
        <xsd:element ref="ProfitCenterID" minOccurs="0" />
        <xsd:element ref="GLEntityID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="GLElement" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CostCenterID oa:CostCenterID 0 (1)
ProfitCenterID oa:ProfitCenterID 0 (1)
GLEntityID oa:GLEntityID 0 unbounded
GLElement oa:GLElement 0 (1)
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:EnterpriseUnit
