Definition Type: ComplexType
Name: FacilityBaseType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

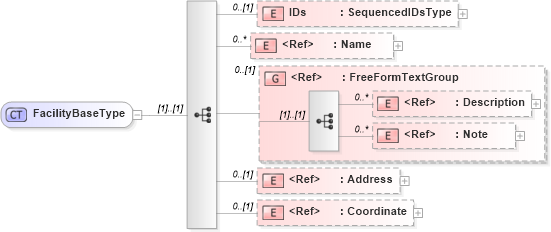

Collapse XSD Schema Diagram:
Drilldown into Coordinate in schema components_xsd1 Drilldown into Address in schema components_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Name in schema fields_xsd1 Drilldown into IDs in schema components_xsd1XSD Diagram of FacilityBaseType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="FacilityBaseType">
    <xsd:sequence>
        <xsd:element name="IDs" type="SequencedIDsType" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="FreeFormTextGroup" minOccurs="0" />
        <xsd:element ref="Address" minOccurs="0" />
        <xsd:element ref="Coordinate" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IDs oa:IDs 0 (1)
Name oa:Name 0 unbounded
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
Address oa:Address 0 (1)
Coordinate oa:Coordinate 0 (1)
<xs:group> oa:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:FacilityType
