Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: FinancialAccountType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

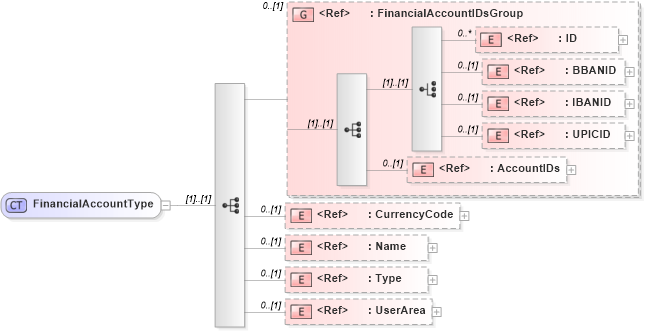

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into CurrencyCode in schema fields_xsd1 Drilldown into AccountIDs in schema components_xsd1 Drilldown into UPICID in schema fields_xsd1 Drilldown into IBANID in schema fields_xsd1 Drilldown into BBANID in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into FinancialAccountIDsGroup in schema components_xsd1XSD Diagram of FinancialAccountType in schema components_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="FinancialAccountType">
    <xsd:sequence>
        <xsd:group ref="FinancialAccountIDsGroup" minOccurs="0" />
        <xsd:element ref="CurrencyCode" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:element ref="Type" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oa:ID 0 unbounded
BBANID oa:BBANID 0 (1)
IBANID oa:IBANID 0 (1)
UPICID oa:UPICID 0 (1)
AccountIDs oa:AccountIDs 0 (1)
CurrencyCode oa:CurrencyCode 0 (1)
Name oa:Name 0 (1)
Type oa:Type 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:FinancialAccountIDsGroup 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:FinancialAccount
