Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: GeneralInformation1
Namespace: urn:swift:xsd:$pain.002.001.01
Containing Schema: $pain.002.001.01.xsd
Abstract
Collapse XSD Schema Diagram:

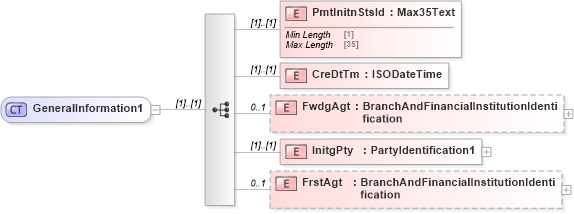

Drilldown into FrstAgt in schema $pain_002_001_01_xsd Drilldown into InitgPty in schema $pain_002_001_01_xsd Drilldown into FwdgAgt in schema $pain_002_001_01_xsd Drilldown into CreDtTm in schema $pain_002_001_01_xsd Drilldown into PmtInitnStsId in schema $pain_002_001_01_xsdXSD Diagram of GeneralInformation1 in schema $pain_002_001_01_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xs:complexType name="GeneralInformation1">
    <xs:sequence>
        <xs:element name="PmtInitnStsId" type="Max35Text" />
        <xs:element name="CreDtTm" type="ISODateTime" />
        <xs:element name="FwdgAgt" type="BranchAndFinancialInstitutionIdentification" minOccurs="0" maxOccurs="1" />
        <xs:element name="InitgPty" type="PartyIdentification1" />
        <xs:element name="FrstAgt" type="BranchAndFinancialInstitutionIdentification" minOccurs="0" maxOccurs="1" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PmtInitnStsId nsC:PmtInitnStsId (1) (1)
CreDtTm nsC:CreDtTm (1) (1)
FwdgAgt nsC:FwdgAgt 0 1
InitgPty nsC:InitgPty (1) (1)
FrstAgt nsC:FrstAgt 0 1
Collapse Derivation Tree:
Collapse References:
nsC:GnlInf
