Definition Type: ComplexType
Name: GetStockDepositType
Namespace: http://www.hr-xml.org/3
Type: oa:BusinessObjectDocumentType
Containing Schema: GetStockDeposit.xsd
Abstract
Documentation:
GetStockDeposit is used to request retrieval of existing StockDeposit data. StockDeposit Contains instructions for the broker to distribute stock to a given set of participants. The broker receives a stock transfer by the ESPP sponsor company's transfer agent and therefore needs this instruction before distribution can take place. Get is an "Action Verb". The purpose of the Get verb is to communicate to a business software component a request for an existing piece of information to be returned. Get is designed to retrieve a single piece of information by using that information's primary retrieval field (key field) or other significant property. Get provides two types of retrieval capabilities: Field-Based Selection and Data Type Selection.

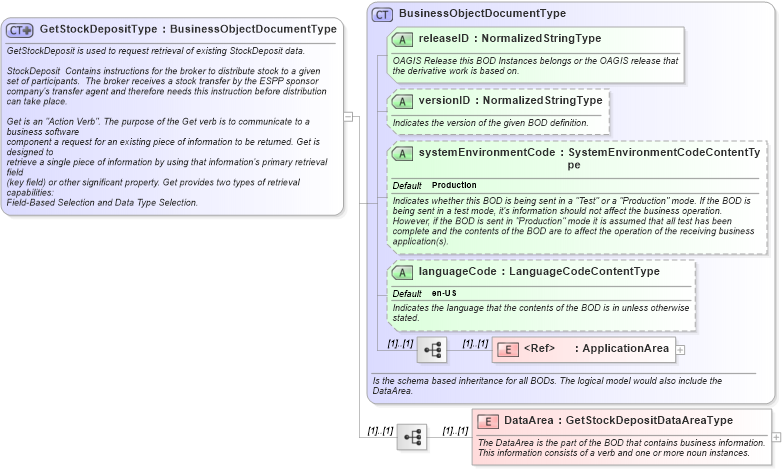

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema getstockdeposit_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into languageCode in schema meta_xsd Drilldown into systemEnvironmentCode in schema meta_xsd Drilldown into versionID in schema meta_xsd Drilldown into releaseID in schema meta_xsd Drilldown into BusinessObjectDocumentType in schema meta_xsdXSD Diagram of GetStockDepositType in schema getstockdeposit_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="GetStockDepositType">
    <xsd:annotation>
        <xsd:documentation>
       GetStockDeposit is used to request retrieval of existing StockDeposit data.

       StockDeposit  Contains instructions for the broker to distribute stock to a given set of participants.  The broker receives a stock transfer by the ESPP sponsor company's transfer agent and therefore needs this instruction before distribution can take place.

       Get is an "Action Verb". The purpose of the Get verb is to communicate to a business software
       component a request for an existing piece of information to be returned. Get is designed to
       retrieve a single piece of information by using that information's primary retrieval field
       (key field) or other significant property. Get provides two types of retrieval capabilities:
       Field-Based Selection and Data Type Selection.
       </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="oa:BusinessObjectDocumentType">
            <xsd:sequence>
                <xsd:element name="DataArea" type="GetStockDepositDataAreaType">
                    <xsd:annotation>
                        <xsd:documentation>The DataArea is the part of the BOD that contains business information. This information consists of a verb and one or more noun instances.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea nsA:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
releaseID oa:releaseID Required
versionID oa:versionID Optional
systemEnvironmentCode oa:systemEnvironmentCode Production Optional
languageCode oa:languageCode en-US Optional
Collapse Derivation Tree:
Collapse References:
nsA:GetStockDeposit
